R114205000W

Active

Radiall USA, Inc.

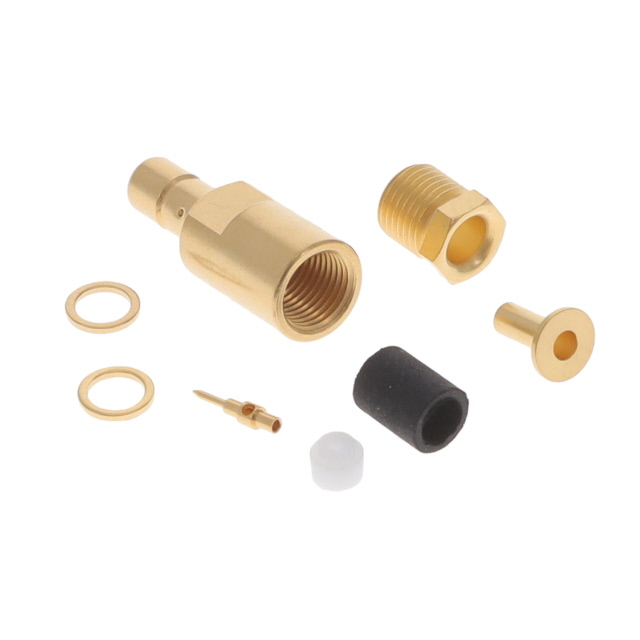

SMB / STRAIGHT JACK CLAMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / STRAIGHT JACK CLAMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R114205000W

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179, 188, 187, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Center Contact Material	Shield Termination	Contact Termination	Housing Color	Connector Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Cable Group	Body Material	Fastening Type	Mounting Type	Center Contact Plating	Voltage Rating	Connector Style	Mating Cycles	Dielectric Material	Number of Ports	Impedance
Radiall USA, Inc. R114205000W	Brass	Clamp	Solder	Gold	Jack Male Pin	Gold	-65 ░C	165 °C	4 GHz	187 188 316 RG-179	Brass	Snap-On	Free Hanging (In-Line)	Gold	335 V	SMB	500	Polytetrafluoroethylene (PTFE)	1	50 Ohms
