DLCBSM-7-01

Active

Essentra Access Solutions

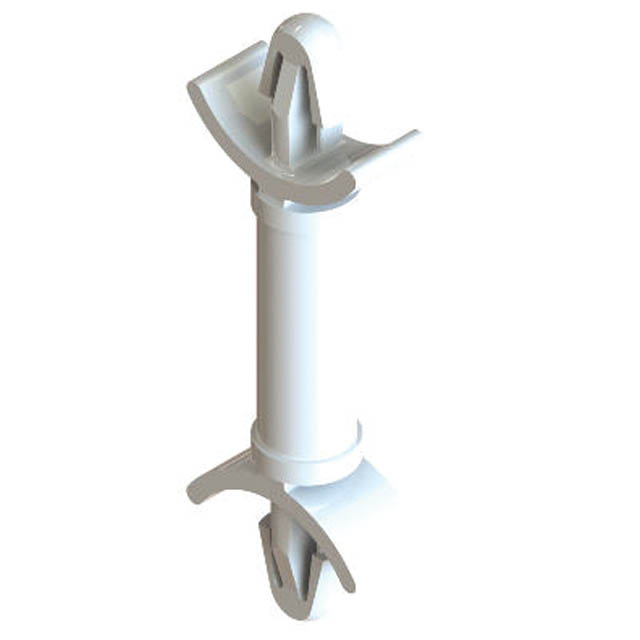

BRD SPT SNAP LOCK NYLON 7/16"

Deep-Dive with AI

Search across all available documentation for this part.

DLCBSM-7-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 7/16"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBSM-7-01

Between Board Height	0.438 in
Between Board Height	0.4375 in
Between Board Height	11.13 mm
Features	Winged
Holding Type	Snap Lock
Length - Overall	0.949 in
Length - Overall	24.1 mm
Material	Nylon
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	3.18 mm
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	3.18 mm
Support Panel Thickness [Max]	1.98 mm
Support Panel Thickness [Max]	0.078 "
Support Panel Thickness [Min]	0.79 mm
Support Panel Thickness [Min]	0.031 in

DLCBSM Series

Part	Length - Overall	Length - Overall	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Features	Mounting Type	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Between Board Height	Between Board Height	Between Board Height	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions DLCBSM-7-01	0.949 in	24.1 mm	0.125 in	0.125 in	3.18 mm	1.98 mm	0.79 mm	0.031 in	0.078 "	Winged	Snap Lock	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.438 in	0.4375 in	11.13 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions DLCBSM-9-01			0.125 in	0.125 in	3.18 mm	1.98 mm	0.79 mm	0.031 in	0.078 "	Winged	Snap Lock	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.563 in	14.3 mm	0.5625 in	0.79 mm	1.98 mm	0.031 in	0.078 "	27.3 mm	1.075 in
Essentra Access Solutions DLCBSM-5-01			0.125 in	0.125 in	3.18 mm	1.98 mm	0.79 mm	0.031 in	0.078 "	Winged	Snap Lock	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.313 "	7.95 mm	0.3125 in	0.79 mm	1.98 mm	0.031 in	0.078 "	20.9 mm	0.823 in
Essentra Access Solutions DLCBSM-4-01			0.125 in	0.125 in	3.18 mm	1.98 mm	0.79 mm	0.031 in	0.078 "	Winged	Snap Lock	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.25 in	6.35 mm	0.25 in	0.79 mm	1.98 mm	0.031 in	0.078 "	19.4 mm	0.764 in
Essentra Access Solutions DLCBSM-8-01			0.125 in	0.125 in	3.18 mm	1.98 mm	0.79 mm	0.031 in	0.078 "	Winged	Snap Lock	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.5 in	12.7 mm	0.5 in	0.79 mm	1.98 mm	0.031 in	0.078 "	25.7 mm	1.012 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		5	$ 0.25
		10	$ 0.20
		25	$ 0.19
		50	$ 0.18
		100	$ 0.16
		250	$ 0.16
		500	$ 0.15
		1000	$ 0.14

Description

General part information

DLCBSM Series

Board Support Snap Lock / Snap Lock Nylon 0.438" (11.13mm) 7/16"

Documents

Technical documentation and resources

No documents available
