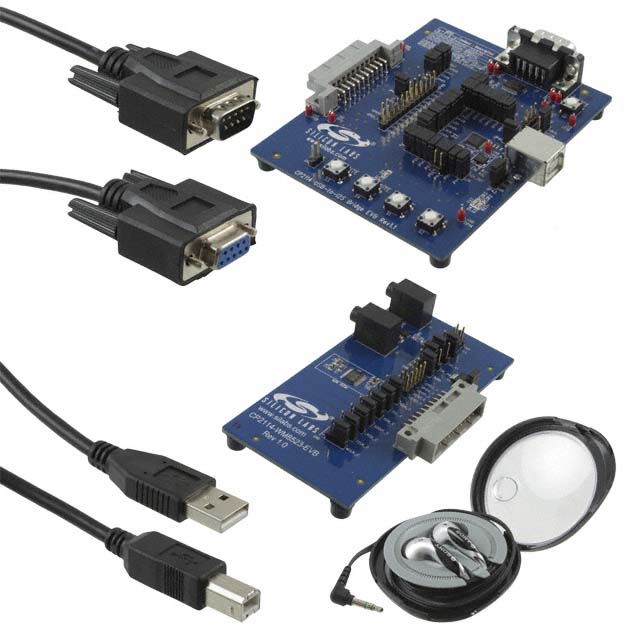

CP2114-WM8523EK

Silicon Labs

KIT EVAL CP2114-WM8523

Search across all available documentation for this part.

Silicon Labs

KIT EVAL CP2114-WM8523

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Function	Contents	Type	Supplied Contents	Supplier Device Package	Protocol	Standards	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply
Silicon Labs CP2114-WM8523EK	CP2114	USB to I2S	Board(s)	Interface	Board(s)
Silicon Labs CP2114-B01-GM		Bridge USB to I2S				32-QFN (5x5)	USB	USB 2.0	3.6 V	3 V	I2S	85 °C	-40 °C	32-VFQFN Exposed Pad	200 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 278.66

General part information

CP2114 - USB to I2S Interface Evaluation Board
