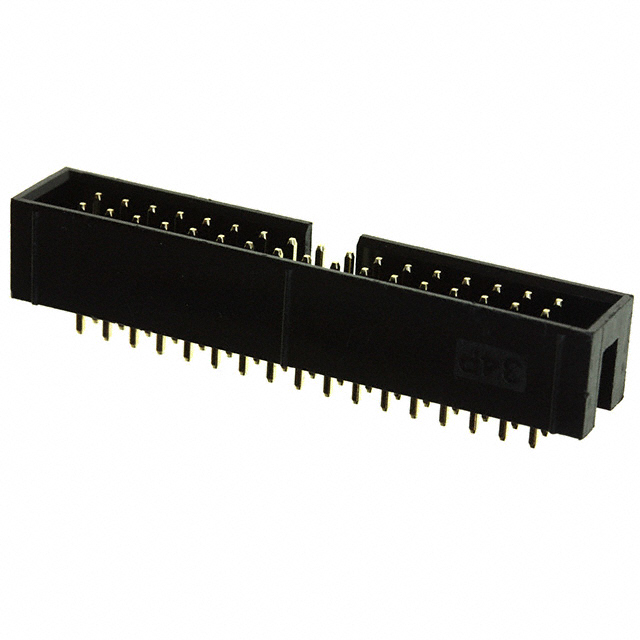

SBH11-PBPC-D17-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

SBH11-PBPC-D17-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBH11-PBPC-D17-ST-BK

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	18.35 mm, 9.65 mm, 11.2 mm, 13.35 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

SBH11 Series

Part	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Number of Positions	Insulation Material	Contact Material	Insulation Height	Insulation Height	Current Rating (Amps)	Features	Style	Mounting Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Shape	Number of Rows	Material Flammability Rating	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post	Contact Length - Post [x]	Number of Positions	Mated Stacking Heights	Contact Length - Post
Sullins Connector Solutions SBH11-PBPC-D03-RA-BK	0.1 in	2.54 mm	Male Pin	Black	6	Polybutylene Terephthalate (PBT)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole Right Angle	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3.2 mm	0.126 in
Sullins Connector Solutions SBH11-NBPC-D08-RA-BK	0.1 in	2.54 mm	Male Pin	Black		Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole Right Angle	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3.2 mm	0.126 in	16
Sullins Connector Solutions SBH11-PBPC-D17-ST-BK	0.1 in	2.54 mm	Male Pin	Black	34	Polybutylene Terephthalate (PBT)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3 mm			9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in
Sullins Connector Solutions SBH11-NBPC-D07-ST-BK	0.1 in	2.54 mm	Male Pin	Black	14	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3 mm			9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in
Sullins Connector Solutions SBH11-PBPC-D20-ST-BK	0.1 in	2.54 mm	Male Pin	Black	40	Polybutylene Terephthalate (PBT)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3 mm			9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in
Sullins Connector Solutions SBH11-NBPC-D07-RA-BK	0.1 in	2.54 mm	Male Pin	Black	14	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole Right Angle	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3.2 mm	0.126 in
Sullins Connector Solutions SBH11-NBPC-D15-SM-BK	0.1 in	2.54 mm	Male Pin	Black	30	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Surface Mount	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold				11.17 mm 12.72 mm 14.87 mm 19.87 mm
Sullins Connector Solutions SBH11-NBPC-D03-RA-BK	0.1 in	2.54 mm	Male Pin	Black	6	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Through Hole Right Angle	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold	3.2 mm	0.126 in
Sullins Connector Solutions SBH11-NBPC-D25-SM-BK	0.1 in	2.54 mm	Male Pin	Black	50	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Surface Mount	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold				11.17 mm 12.72 mm 14.87 mm 19.87 mm
Sullins Connector Solutions SBH11-NBPC-D20-SM-BK	0.1 in	2.54 mm	Male Pin	Black	40	Nylon Polyamide (PA)	Brass	0.358 in	9.1 mm	3 A	Keying Slot	Board to Board Cable	Surface Mount	Header	2.54 mm	0.1 in	Flash	Push-Pull	-40 °C	105 ░C	Shrouded - 4 Wall	Square	2	UL94 V-0	Gold	Solder	Flash	All	Gold				11.17 mm 12.72 mm 14.87 mm 19.87 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.68
		10	$ 0.58
		80	$ 0.52
		440	$ 0.42
		1000	$ 0.38
		5000	$ 0.34

Description

General part information

SBH11 Series

Connector Header Through Hole 34 position 0.100" (2.54mm)
