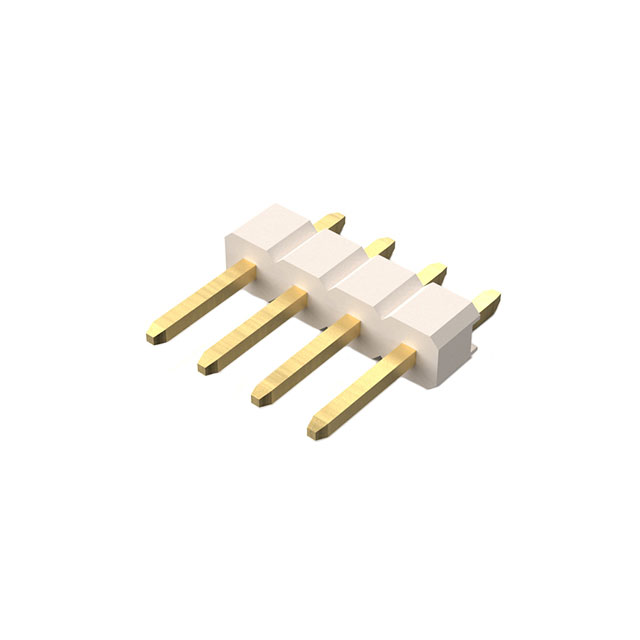

BG301-04-A-0540-L-B

Active

GCT

CONN HEADER SMD R/A 4POS 2.54MM

Search across all available documentation for this part.

Active

GCT

CONN HEADER SMD R/A 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BG301-04-A-0540-L-B

Applications	General Purpose
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.4 mm
Contact Length - Mating	0.213 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Natural
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

CONN HEADER SMD R/A 4POS 2.54MM

Part	Termination	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Mounting Type	Applications	Insulation Height [z]	Insulation Height [z]	Number of Positions	Shrouding	Features	Current Rating (Amps)	Contact Finish Thickness - Mating	Connector Type	Contact Shape	Contact Type	Fastening Type
GCT BG301-04-A-0540-L-B	Solder	Copper Alloy	Natural	-40 °C	105 ░C	5.4 mm	0.213 in	Flash	Gold	0.1 in	2.54 mm	Gold	All	UL94 V-0	1	Surface Mount, Right Angle	General Purpose	0.098 in	2.5 mm	4	Unshrouded	Pick and Place	3 A	Flash	Cuttable, Header	Square	Male Pin	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
