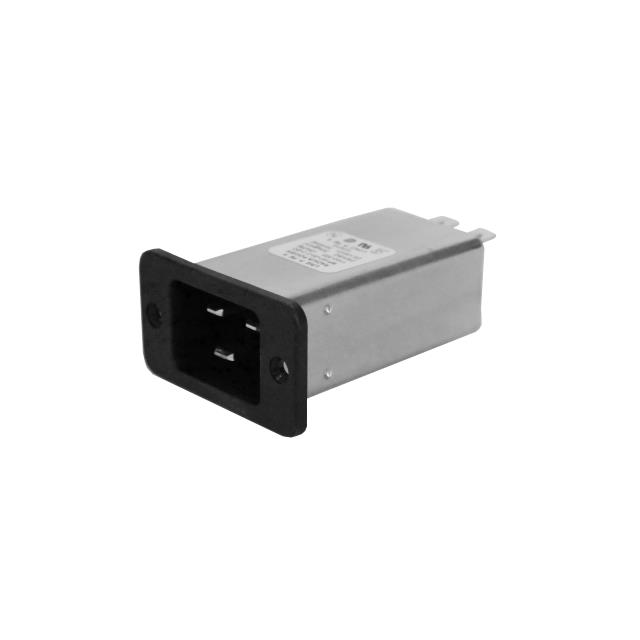

RP187-20-1-W

Active

Astrodyne TDI

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP187-20-1-W

Active

Astrodyne TDI

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP187-20-1-W

Applications	General Purpose
Approval Agency	CE, CSA, ENEC, cURus
Configuration	Two Stage
Current	20 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads, IEC 320-C20
Voltage - Rated AC	250 V

RP187 Series

Part	Voltage - Rated AC	Mounting Type	Current	Filter Type	Operating Temperature [custom]	Termination Style	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Approval Agency
Astrodyne TDI RP187-1-2.2-W	250 V	Chassis Mount	1 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Wire Leads	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-20-1-QD	250 V	Chassis Mount	20 A	Single Phase	-25 °C 100 °C	IEC 320-C20 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-20-1-W	250 V	Chassis Mount	20 A	Single Phase	-25 °C 100 °C	IEC 320-C20 Wire Leads	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-6-2.2-QD	250 V	Chassis Mount	6 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-3-2.2-QD	250 V	Chassis Mount	3 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-20-2.2-QD	250 V	Chassis Mount	20 A	Single Phase	-25 °C 100 °C	IEC 320-C20 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-10-2.2-W	250 V	Chassis Mount	10 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Wire Leads	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-10-2.2-QD	250 V	Chassis Mount	10 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-10-0-QD	250 V	Chassis Mount	10 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Quick Connect	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC
Astrodyne TDI RP187-3-1-W	250 V	Chassis Mount	3 A	Single Phase	-25 °C 100 °C	IEC 320-C14 Wire Leads	Two Stage	60 Hz	50 Hz	General Purpose	CE CSA cURus ENEC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.01

Description

General part information

RP187 Series

Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Two Stage IEC 320-C20, Wire Leads
