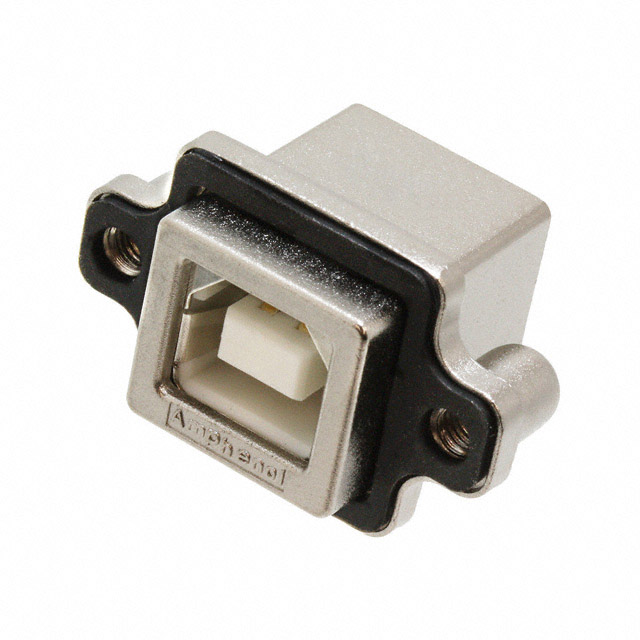

Specification	MUSBD111M0

Connector Type	USB-B (USB TYPE-B)
Contact Finish	Gold
Current Rating	1.5 A
Features	Board Guide
Gender	Receptacle
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500 cycles
Mounting Feature	Flange, Horizontal
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Contacts	4
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

MUSBD Series

Part	Shielding	Termination	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Contacts	Gender	Number of Ports	Specifications	Ingress Protection Description	Ingress Protection IP Rating	Features	Current Rating	Mounting Feature	Mounting Type	Mating Cycles	Material Flammability Rating	Shell/Shielding Material	Insulation Color	Contact Finish	Convert From (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Positions
Amphenol ICC (Commercial Products) MUSBD111M0	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Guide	1.5 A	Flange Horizontal	Panel Mount Right Angle Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBD511N1	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Lock Cover	1.5 A	Flange Vertical	Panel Mount Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBDA1130	Shielded	PC Board Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67		1.5 A	Flange Horizontal	Panel Mount	1500 cycles	UL94 V-0		White	Gold
Amphenol ICC (Commercial Products) MUSBD51101	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Lock Cover	1.5 A	Flange Vertical	Panel Mount Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBD11130	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Guide	1.5 A	Flange Horizontal	Panel Mount Right Angle Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBD111M5	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Guide Cover	1.5 A	Flange Horizontal	Panel Mount Right Angle Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBD21131															Board Mounted						Receptacle USB-B (USB TYPE-B)	Male Pins Rectangular Connector	10 Positions
Amphenol ICC (Commercial Products) MUSBD21130															Board Mounted						Receptacle USB-B (USB TYPE-B)	Male Pins Rectangular Connector	10 Positions
Amphenol ICC (Commercial Products) MUSBD11135	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Guide Cover	1.5 A	Flange Horizontal	Panel Mount Right Angle Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold
Amphenol ICC (Commercial Products) MUSBD511N0	Shielded	Solder	USB-B (USB TYPE-B)	-40 °C	105 °C	4	Receptacle	1	USB 2.0	Dust Tight Waterproof	IP67	Board Lock	1.5 A	Flange Vertical	Panel Mount Through Hole	1500 cycles	UL94 V-0	Copper Alloy	White	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MUSBD111M0 | Datasheet

Datasheet
