IXYT20N120C3D1HV

Active

IXYS

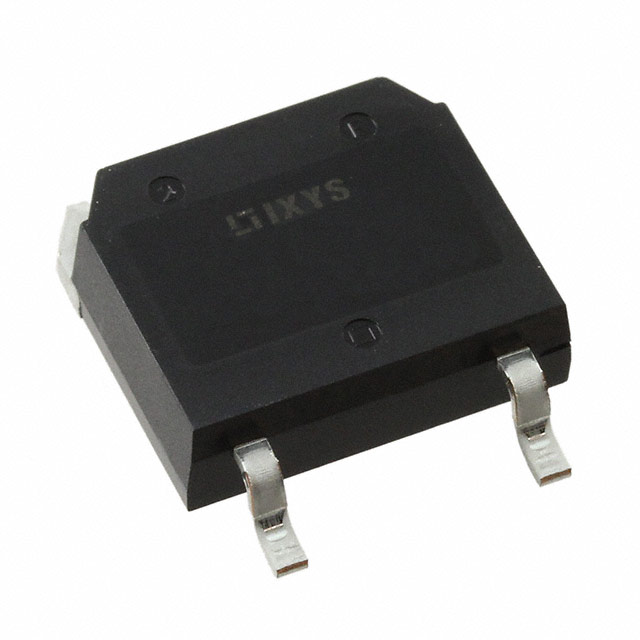

IGBT 1200V 36A TO268HV

Search across all available documentation for this part.

Active

IXYS

IGBT 1200V 36A TO268HV

Technical Specifications

Parameters and characteristics for this part

Specification	IXYT20N120C3D1HV

Current - Collector (Ic) (Max) [Max]	36 A
Current - Collector Pulsed (Icm)	88 A
Gate Charge	53 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	230 W
Reverse Recovery Time (trr)	29 ns
Supplier Device Package	TO-268HV (IXYT)
Switching Energy	1 mJ, 1.3 mJ
Td (on/off) @ 25°C	20 ns, 90 ns
Test Condition	600 V, 20 A, 10 Ohm, 15 V
Vce(on) (Max) @ Vge, Ic	3.4 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Power - Max [Max]	Mounting Type	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Switching Energy	Reverse Recovery Time (trr)	Package / Case	Test Condition	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]
IXYS IXYT20N120C3D1HV	230 W	Surface Mount	88 A	3.4 V	20 ns 90 ns	-55 °C	150 °C	53 nC	1 mJ 1.3 mJ	29 ns	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	10 Ohm 15 V 20 A 600 V	TO-268HV (IXYT)	1200 V	36 A
