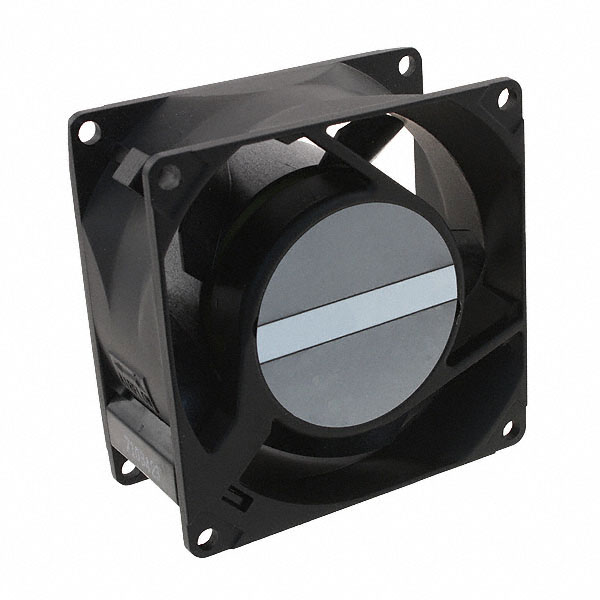

Specification	3115FS-12T-B10-A00

Air Flow	22 CFM
Approval Agency	TUV, UL, CSA, VDE, CE
Bearing Type	Ball
Current Rating	0.087 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	36 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	6 W
RPM	2100 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.09 in H2O
Termination	2 Terminals
Termination Count	2
Voltage - Rated	115 V
Weight	0.74 lb
Width	38 mm

3115FS Series

Part	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Static Pressure	Power (Watts)	Termination Leads Count	Termination Type	Termination	Width	RPM	Air Flow	Operating Temperature (Max)	Operating Temperature (Min)	Noise	Fan Type	Weight	Voltage - Rated	Bearing Type	Approval Agency	Material - Frame	Current Rating	Material - Blade	Termination Count
NMB TECHNOLOGIES 3115FS-12W-B20-A00	80 mm	Square	80 mm	0.13 in H2O	7 W	2 leads	Wire Leads	2 Wire Leads	38 mm	2700 RPM	27 CFM	158 °F	14 °F	40 dB	Tubeaxial	0.74 lb	115 V	Ball	CE CSA TUV UL VDE	Aluminum	0.09 A	Plastic
NMB TECHNOLOGIES 3115FS-12T-B10-A00	80 mm	Square	80 mm	0.09 in H2O	6 W			2 Terminals	38 mm	2100 RPM	22 CFM	158 °F	14 °F	36 dB	Tubeaxial	0.74 lb	115 V	Ball	CE CSA TUV UL VDE	Aluminum	0.087 A	Plastic	2
NMB TECHNOLOGIES 3115FS-23T-B10-A00	80 mm	Square	80 mm	0.09 in H2O	6.5 W			2 Terminals	38 mm	2050 RPM	20 CFM	158 °F	14 °F	35 dB	Tubeaxial	0.74 lb	230 VAC	Ball	CE CSA TUV UL VDE	Aluminum	50 mA	Plastic	2
NMB TECHNOLOGIES 3115FS-12W-B10-A00	80 mm	Square	80 mm	0.09 in H2O	6 W	2 leads	Wire Leads	2 Wire Leads	38 mm	2100 RPM	22 CFM	158 °F	14 °F	36 dB	Tubeaxial	0.74 lb	115 V	Ball	CE CSA TUV UL VDE	Aluminum	0.087 A	Plastic
NMB TECHNOLOGIES 3115FS-23W-B30-A00	80 mm	Square	80 mm	0.18 in H2O	8 W	2 leads	Wire Leads	2 Wire Leads	38 mm	3250 RPM	33 CFM	158 °F	14 °F	44 dB	Tubeaxial	0.74 lb	230 VAC	Ball	CE CSA TUV UL VDE	Aluminum	0.065 A	Plastic
NMB TECHNOLOGIES 3115FS-12T-B20-A00	80 mm	Square	80 mm	0.13 in H2O	7 W			2 Terminals	38 mm	2700 RPM	27 CFM	158 °F	14 °F	40 dB	Tubeaxial	0.74 lb	115 V	Ball	CE CSA TUV UL VDE	Aluminum	0.09 A	Plastic	2
NMB TECHNOLOGIES 3115FS-23T-B30-A00	80 mm	Square	80 mm	0.18 in H2O	8 W			2 Terminals	38 mm	3250 RPM	33 CFM	158 °F	14 °F	44 dB	Tubeaxial	0.74 lb	230 VAC	Ball	CE CSA TUV UL VDE	Aluminum	0.065 A	Plastic	2
NMB TECHNOLOGIES 3115FS-23T-B20-A00	80 mm	Square	80 mm	0.13 in H2O	7.5 W			2 Terminals	38 mm	2750 RPM	28 CFM	158 °F	14 °F	40 dB	Tubeaxial	0.74 lb	230 VAC	Ball	CE CSA TUV UL VDE	Aluminum	60 mA	Plastic	2
NMB TECHNOLOGIES 3115FS-23W-B20-A00	80 mm	Square	80 mm	0.13 in H2O	7.5 W	2 leads	Wire Leads	2 Wire Leads	38 mm	2750 RPM	28 CFM	158 °F	14 °F	40 dB	Tubeaxial	0.74 lb	230 VAC	Ball	CE CSA TUV UL VDE	Aluminum	60 mA	Plastic
NMB TECHNOLOGIES 3115FS-12W-B30-A00	80 mm	Square	80 mm	0.18 in H2O	8.5 W	2 leads	Wire Leads	2 Wire Leads	38 mm	3250 RPM	32 CFM	158 °F	14 °F	44 dB	Tubeaxial	0.74 lb	115 V	Ball	CE CSA TUV UL VDE	Aluminum	100 mA	Plastic
