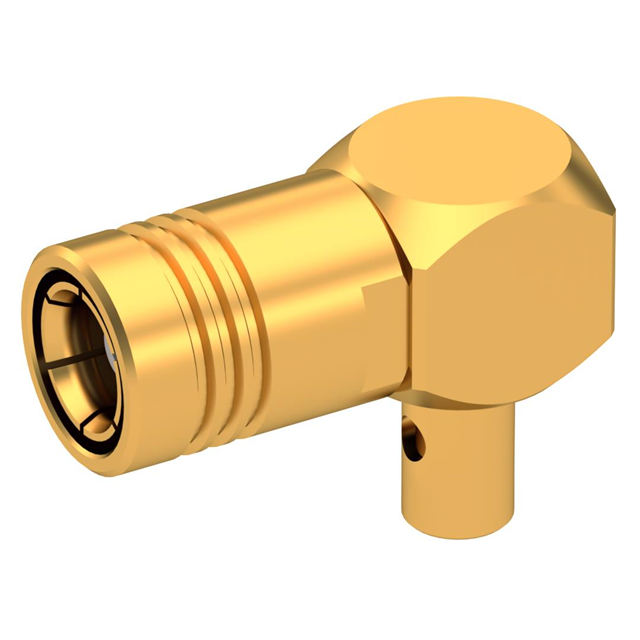

R114169000

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE PLUG SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE PLUG SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R114169000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Mating Cycles	Center Contact Material	Connector Style	Dielectric Material	Center Contact Plating	Number of Ports	Impedance	Connector Type	Fastening Type	Mounting Type	Body Finish	Housing Color	Body Material	Frequency - Max [Max]	Shield Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R114169000	Solder	500	Beryllium Copper	SMB	Polytetrafluoroethylene (PTFE)	Gold	1	50 Ohms	Female Socket Plug	Snap-On	Free Hanging (In-Line) Right Angle	Gold	Gold	Brass	4 GHz	Solder	RG-405 (.085" Semi Rigid)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.59

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
