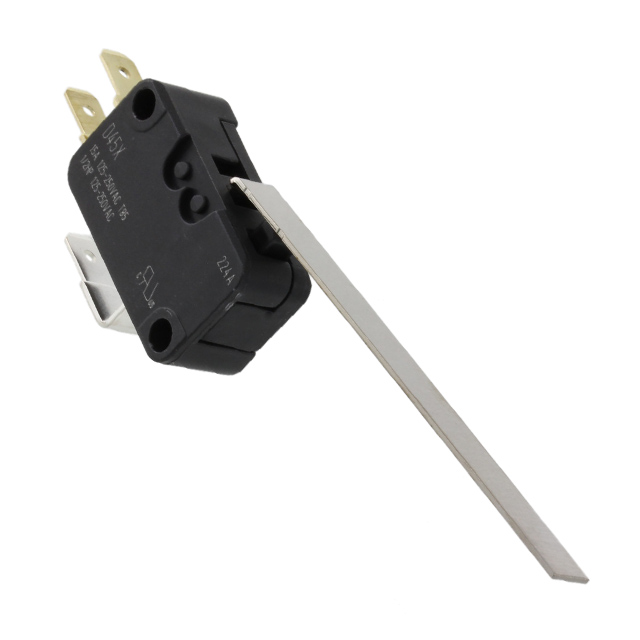

D459-R1ML-G2

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 16A 250V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 16A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 16A 250V

Part	Release Force	Pretravel	Pretravel	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Differential Travel	Differential Travel	Features	Current Rating (Amps)	Overtravel	Overtravel	Operating Position	Operating Position	Electrical Life	Termination Style	Operating Force	Switch Function
ZF Electronics D459-R1ML-G2	3.059 gf	12.7 mm	0.5 in	250 V	SPDT	85 °C	-40 °C	Lever, Straight	Chassis Mount	0.098 in	2.5 mm	Explosion Proof	16 A	7.9 mm	0.312 in	0.6 in	15.2 mm	50000 Cycles	Quick Connect - 0.187" (4.7mm)	13 gf	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount

Technical documentation and resources

No documents available
