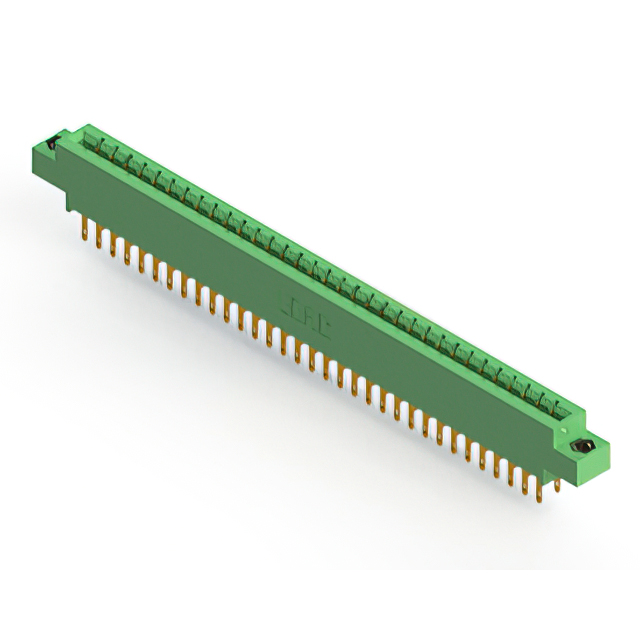

333-066-500-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

333-066-500-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-066-500-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

333-066 Series

...

Part	Mounting Type	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Gender	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Read Out	Number of Rows	Material - Insulation	Color	Features
EDAC Inc. 333-066-540-803	Through Hole	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green
EDAC Inc. 333-066-560-803	Board Edge Straddle Mount	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green	Card Extender
EDAC Inc. 333-066-560-207	Board Edge Straddle Mount	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green	Card Extender
EDAC Inc. 333-066-520-803	Through Hole	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green
EDAC Inc. 333-066-542-207	Through Hole	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green
EDAC Inc. 333-066-558-807	Through Hole Right Angle	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green
EDAC Inc. 333-066-555-807	Board Edge Straddle Mount	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder Eyelet(s)	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green	Card Extender
EDAC Inc. 333-066-559-807	Through Hole Right Angle	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Dual	2	Polyester Thermoplastic	Green
EDAC Inc. 333-066-500-807	Through Hole	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder Eyelet(s)	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Dual	2	Diallyl Phthalate (DAP)	Green
EDAC Inc. 333-066-500-202	Through Hole	2	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	Cantilever	66	Female	33	Solder Eyelet(s)	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Dual	2	Diallyl Phthalate (DAP)	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.75

Description

General part information

333-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
