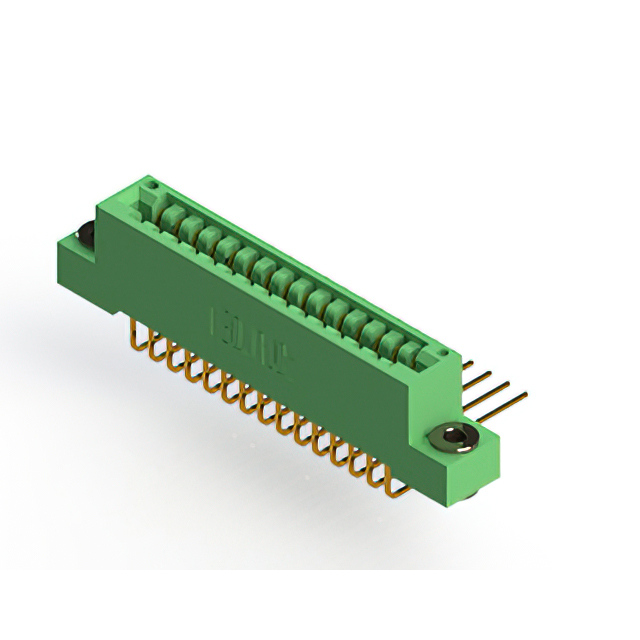

346-030-559-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
346-030-559-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-030-559-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
346-030 Series
...
| Part | Color | Material - Insulation | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Gender | Card Type | Pitch [x] | Pitch [x] | Number of Rows | Read Out | Contact Finish | Contact Material | Flange Feature | Contact Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Polyester Thermoplastic | 30 | -40 °C | 105 ░C | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Single | Gold | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1 | 10 Áin | 0.25 Ám | 30 | Solder Eyelet(s) | ||
EDAC Inc. | Green | Polyester Thermoplastic | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Single | Gold | Copper Alloy | Cantilever | 1 | 10 Áin | 0.25 Ám | 30 | Wire Wrap | ||||
EDAC Inc. | Green | Polyester Thermoplastic | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Single | Gold | Copper Alloy | Cantilever | 1 | 10 Áin | 0.25 Ám | 30 | Wire Wrap | ||||
EDAC Inc. | Green | Polyester Thermoplastic | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Single | Gold | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1 | 10 Áin | 0.25 Ám | 30 | Wire Wrap | |||
EDAC Inc. | Green | Polyester Thermoplastic | 15 | -40 °C | 105 ░C | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Dual | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | Cantilever | 2 | 10 Áin | 0.25 Ám | 30 | Solder | 3.96 mm | 0.156 in |
EDAC Inc. | Green | Polyester Thermoplastic | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Single | Gold | Copper Alloy | M3 Threaded Insert Top Mount Opening | Cantilever | 1 | 10 Áin | 0.25 Ám | 30 | Solder Eyelet(s) | |||
EDAC Inc. | Green | Polyester Thermoplastic | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Dual | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | Cantilever | 2 | 10 Áin | 0.25 Ám | 30 | Solder | 3.96 mm | 0.156 in | |
EDAC Inc. | Green | Polyester Thermoplastic | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Female | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Dual | Gold | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 2 | 10 Áin | 0.25 Ám | 30 | Solder Wire Wrap | |||
EDAC Inc. | Green | Polyester Thermoplastic | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Dual | Gold | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 2 | 10 Áin | 0.25 Ám | 30 | Wire Wrap | |||
EDAC Inc. | Green | Polyester Thermoplastic | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Female | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Dual | Gold | Copper Alloy | Floating Bobbin Flush Mount | Cantilever | 2 | 10 Áin | 0.25 Ám | 30 | Solder Wire Wrap | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
