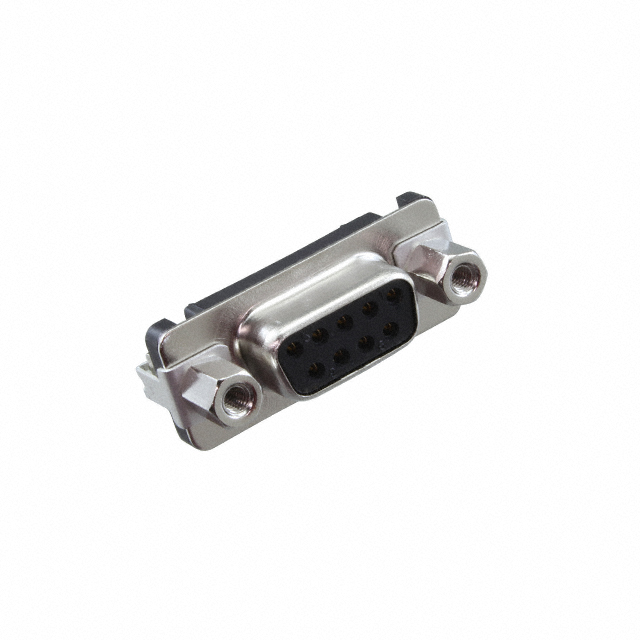

XM3F-0920-112
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
XM3F-0920-112
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XM3F-0920-112 | XM3F Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 16 µin | 16 µin |
| Contact Finish Thickness | 0.41 µm | 0.41 µm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded, Board Lock | Shielded, Board Lock |
| Flange Feature | - | Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 9 | 9 - 37 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | - | Nickel Plated, Steel |
| Shell Size, Connector Layout | - | 4 (DC, C) |
| Shell Size, Connector Layout [custom] | DE, E | DE, E, DB, B |
| Shell Size, Connector Layout [custom] | 1 | 1 - 3 |
| Termination | Solder | Solder |
| Voltage Rating | 300 VDC | 300 VDC |
XM3F Series
CONN D-SUB RCPT 37POS VERT SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Material Flammability Rating | Shell Size, Connector Layout | Mounting Type | Dielectric Material | Connector Type | Connector Style | Contact Type | Flange Feature | Current Rating (Amps) | Number of Rows | Contact Material | Termination | Contact Finish | Shell Material, Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XM3F-3720 | 105 ░C | -55 °C | 300 VDC | 37 | UL94 V-0 | 4 (DC, C) | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | Housing/Shell (Unthreaded) | 5 A | 2 | Phosphor Bronze | Solder | Gold | Nickel Plated, Steel | Black | 16 µin | 0.41 µm | Shielded | ||
Omron Electronics Inc-EMC Div XM3F-3720-112 | 105 ░C | -55 °C | 300 VDC | 37 | UL94 V-0 | 4 (DC, C) | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | 5 A | 2 | Phosphor Bronze | Solder | Gold | Black | 16 µin | 0.41 µm | Board Lock, Shielded | ||||
Omron Electronics Inc-EMC Div XM3F-3720-132 | 105 ░C | -55 °C | 300 VDC | 37 | UL94 V-0 | 4 (DC, C) | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | Female Screwlock (4-40), Mating Side | 5 A | 2 | Phosphor Bronze | Solder | Gold | Black | 16 µin | 0.41 µm | Board Lock, Shielded | |||
Omron Electronics Inc-EMC Div XM3F-0920-112 | 105 ░C | -55 °C | 300 VDC | 9 | UL94 V-0 | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | 5 A | 2 | Phosphor Bronze | Solder | Gold | Black | 16 µin | 0.41 µm | Board Lock, Shielded | DE, E | 1 | |||
Omron Electronics Inc-EMC Div XM3F-0920 | 105 ░C | -55 °C | 300 VDC | 9 | UL94 V-0 | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | Housing/Shell (Unthreaded) | 5 A | 2 | Phosphor Bronze | Solder | Gold | Nickel Plated, Steel | Black | 16 µin | 0.41 µm | Shielded | DE, E | 1 | |
Omron Electronics Inc-EMC Div XM3F-2520 | 105 ░C | -55 °C | 300 VDC | UL94 V-0 | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle, Female Sockets | D-Sub | Signal | Housing/Shell (Unthreaded) | 5 A | 2 | Phosphor Bronze | Solder | Gold | Nickel Plated, Steel | Black | 16 µin | 0.41 µm | Shielded | B, DB | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.30 | |
| 10 | $ 7.36 | |||
| 25 | $ 7.08 | |||
| 40 | $ 6.79 | |||
| 90 | $ 6.64 | |||
Description
General part information
XM3F Series
9 Position D-Sub Receptacle, Female Sockets Connector
