ITCSN-1500-25-U

Active

1.5, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Search across all available documentation for this part.

Active

1.5, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Technical Specifications

Parameters and characteristics for this part

Specification	ITCSN-1500-25-U

Color	Black
Features	Weather Resistant, Split Resistant, UV Resistant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length	7.6 m, 152.4 mm, 76.2 mm, 19.05 mm
Length	25 ft, 0.25 ft, 0.062 '
Length	6 ", 3 ", 0.75 "
Length	0.5 '
Length	Enter Number of Feet in Order Quantity
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Spool Size	7.6 m
Spool Size	25 ft
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Semi Rigid

1.5, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Part	Length	Length	Length	Length	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Length [x]	Shrink Temperature	Shelf Life	Spool Size	Spool Size	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Type	Color	Shelf Life Start
3M ITCSN-1500-25-U	7.6 m, 19.05 mm, 76.2 mm, 152.4 mm	0.062 ', 0.25 ft, 25 ft	0.75 ", 3 ", 6 "	0.5 '	Split Resistant, UV Resistant, Weather Resistant	38.1 mm	1.5 in	0.5 in	12.7 mm	-55 °C	110 °C	4 "	0.333 ft	101.6 mm	121 °C	120 Months	7.6 m	25 ft	Polyolefin (PO), Irradiated	27 °C, 80 °F	10 °C	1	3	Enter Number of Feet in Order Quantity	Tubing, Semi Rigid	Black	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

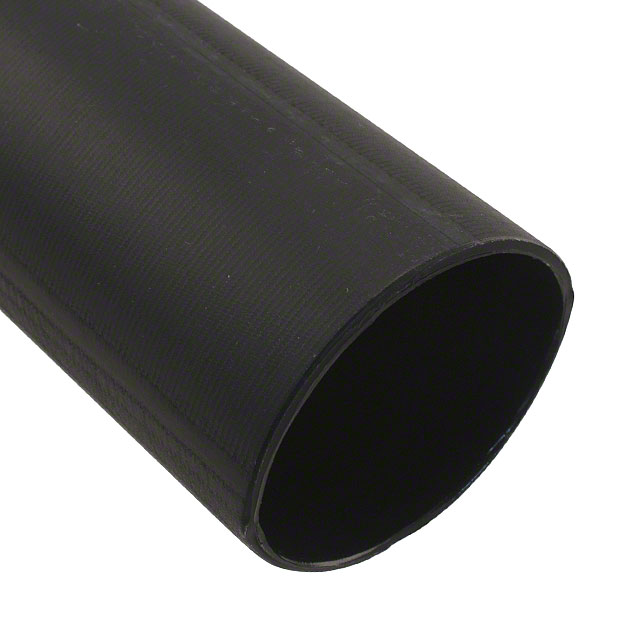

Heat Shrink Tubing, Semi Rigid 1.500" (38.10mm) 3 to 1 Black 0.500' (152.40mm, 6.00")
