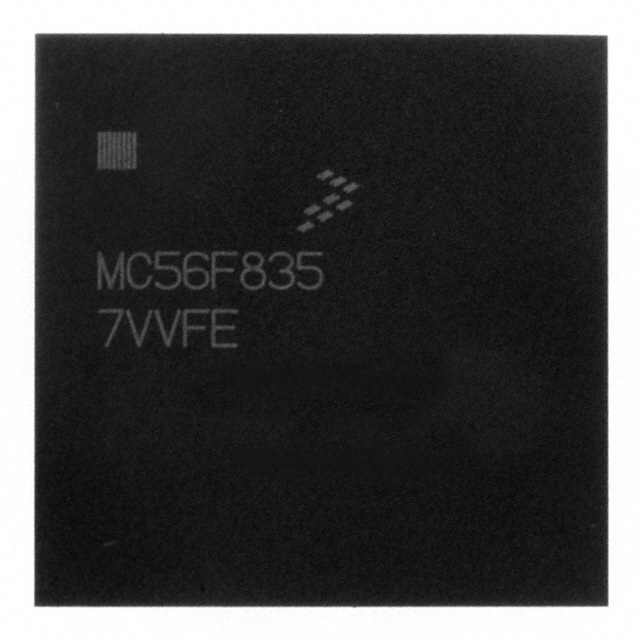

MC56F8347VVFE
ObsoleteFreescale Semiconductor - NXP
IC MCU 16B 128KB FLASH 160MAPBGA
Deep-Dive with AI
Search across all available documentation for this part.
MC56F8347VVFE
ObsoleteFreescale Semiconductor - NXP
IC MCU 16B 128KB FLASH 160MAPBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MC56F8347VVFE |
|---|---|
| Connectivity | EBI/EMI, SPI, CANbus, SCI |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Data Converters [custom] | 16 |
| Data Converters [custom] | 12 b |
| Mounting Type | Surface Mount |
| Number of I/O | 76 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |
| Package / Case | 160-BGA |
| Peripherals | PWM, WDT, POR, Temp Sensor |
| Program Memory Type | FLASH |
| RAM Size | 6K x 16 |
| Speed | 60 MHz |
| Supplier Device Package | 160-MAPBGA |
| Supplier Device Package [x] | 15 |
| Supplier Device Package [y] | 15 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 16 | $ 18.99 | |
Description
General part information
MC56F83 Series
56800E 56F8xxx Microcontroller IC 16-Bit 60MHz 128KB (64K x 16) FLASH 160-MAPBGA (15x15)
Documents
Technical documentation and resources
No documents available
