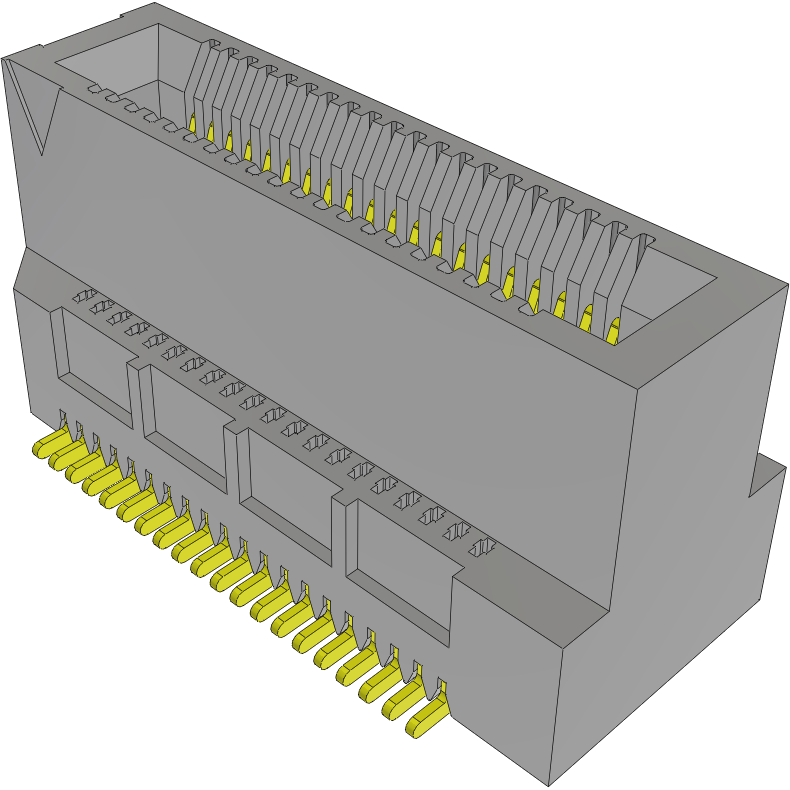

MEC6-120-02-L-DV-A

Active

Samtec Inc.

CONN CARD EDGE SKT 40 POS 0.635MM SOLDER ST SMD TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN CARD EDGE SKT 40 POS 0.635MM SOLDER ST SMD TRAY

Technical Specifications

Parameters and characteristics for this part

Standard Card Edge Connectors 0.635 mm Mini Edge Card Connector, Vertical

Part	Termination	Material - Insulation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Gender	Features	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Number of Rows	Card Type
Samtec Inc. MEC6-120-02-L-DV-K	Solder	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	40	Gold	Surface Mount	10 Áin	0.25 Ám	Dual	Black	Female	Pick and Place	20	20	20	0.64 mm	0.025 in	0.062 in	1.57 mm	2	Non Specified - Dual Edge
Samtec Inc. MEC6-120-02-L-DV-K-TR	Solder	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	40	Gold	Surface Mount	10 Áin	0.25 Ám	Dual	Black	Female	Pick and Place	20	20	20	0.64 mm	0.025 in	0.062 in	1.57 mm	2	Non Specified - Dual Edge
Samtec Inc. MEC6-120-02-S-D-RA1	Solder	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	40	Gold	Surface Mount Right Angle	30 Áin	0.76 Ám	Dual	Black	Female	Board Guide	20	20	20	0.64 mm	0.025 in	0.062 in	1.57 mm	2	Non Specified - Dual Edge
Samtec Inc. MEC6-120-02-L-DV-A	Solder	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	40	Gold	Surface Mount	10 Áin	0.25 Ám	Dual	Black	Female	Board Guide				0.64 mm	0.025 in	0.062 in	1.57 mm	2	Non Specified - Dual Edge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.05
Digikey	Tray	78	$ 5.05
		156	$ 4.72
