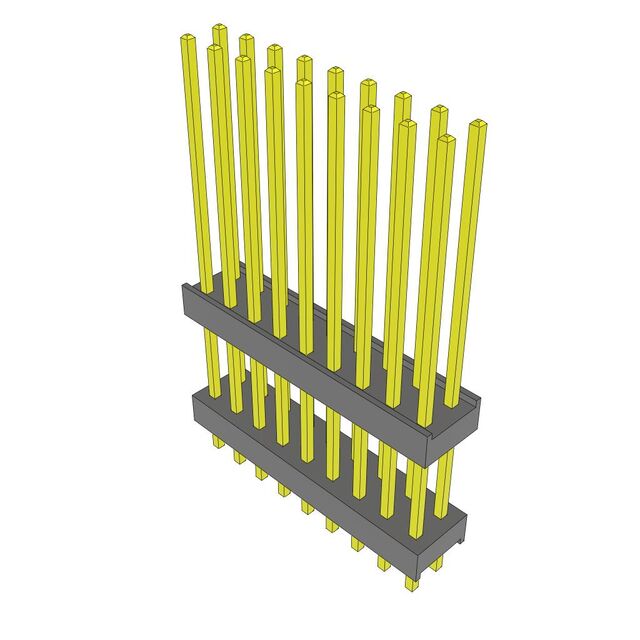

DW-09-19-F-D-500

Active

Samtec Inc.

CONN HDR 18POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

DW-09-19-F-D-500

Active

Samtec Inc.

CONN HDR 18POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-09-19-F-D-500

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	33.782 mm
Length - Overall Pin [x]	1.33 in
Length - Post (Mating) [x]	0.72 in
Length - Post (Mating) [x]	18.288 mm
Length - Stack Height [x]	0.5 in
Length - Stack Height [x]	12.7 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-09-19 Series

Part	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Color	Contact Finish - Post (Mating)	Termination	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Row Spacing [x]	Row Spacing	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]	Length - Stack Height	Length - Stack Height
Samtec Inc. DW-09-19-F-D-1015	33.782 mm	1.33 in	3 Áin	0.076 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	5.207 mm	0.205 in	0.11 in	2.794 mm	1.015 in	25.781 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-F-D-500	33.782 mm	1.33 in	3 Áin	0.076 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	18.288 mm	0.72 in	0.11 in	2.794 mm	0.5 in	12.7 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-S-D-1040-LL	33.782 mm	1.33 in	30 µin	0.76 µm	2.54 mm	0.1 in	Black	Gold	Solder	18	4.572 mm	0.18 in	0.11 in	2.794 mm			2	0.1 in	2.54 mm	Through Hole	26.416 mm	1.04 in
Samtec Inc. DW-09-19-S-D-1000	33.782 mm	1.33 in	30 µin	0.76 µm	2.54 mm	0.1 in	Black	Gold	Solder	18	5.588 mm	0.22 in	0.11 in	2.794 mm	1 in	25.4 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-F-D-1040	33.782 mm	1.33 in	3 Áin	0.076 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	4.572 mm	0.18 in	0.11 in	2.794 mm			2	0.1 in	2.54 mm	Through Hole	26.416 mm	1.04 in
Samtec Inc. DW-09-19-G-D-995	33.782 mm	1.33 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	5.715 mm	0.225 in	0.11 in	2.794 mm	0.995 in	25.273 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-T-S-1015	33.782 mm	1.33 in			2.54 mm	0.1 in	Black	Tin	Solder	9	5.207 mm	0.205 in	0.11 in	2.794 mm	1.015 in	25.781 mm	1			Through Hole
Samtec Inc. DW-09-19-T-D-1050	33.782 mm	1.33 in			2.54 mm	0.1 in	Black	Tin	Solder	18	4.318 mm	0.17 in	0.11 in	2.794 mm	1.05 in	26.67 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-F-D-1000	33.782 mm	1.33 in	3 Áin	0.076 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	5.588 mm	0.22 in	0.11 in	2.794 mm	1 in	25.4 mm	2	0.1 in	2.54 mm	Through Hole
Samtec Inc. DW-09-19-L-D-720	33.782 mm	1.33 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Gold	Solder	18	12.7 mm	0.5 in	0.11 in	2.794 mm			2	0.1 in	2.54 mm	Through Hole			18.288 mm	0.72 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.30

Description

General part information

DW-09-19 Series

18 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

DW Datasheet

Datasheet
