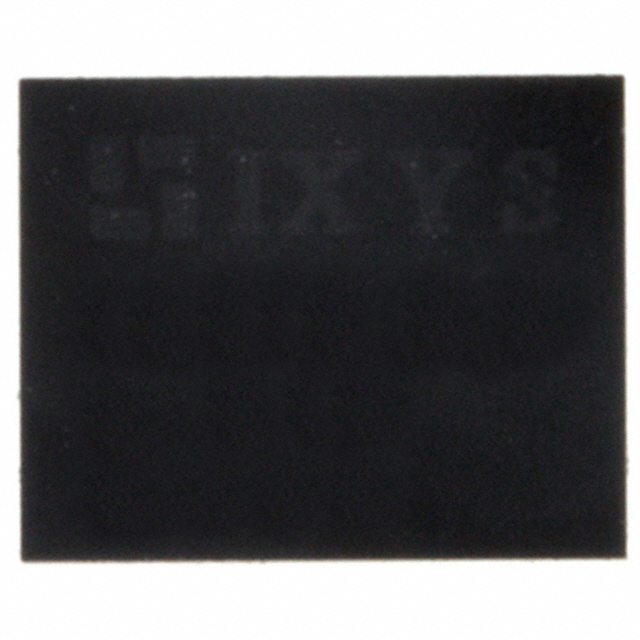

IXDD509D1

Obsolete

IXYS

IC GATE DRVR LOW-SIDE 6DFN

Search across all available documentation for this part.

Obsolete

IXYS

IC GATE DRVR LOW-SIDE 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	IXDD509D1

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	9 A
Current - Peak Output (Source, Sink) [custom]	9 A
Driven Configuration	Low-Side
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-VDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	25 ns
Rise / Fall Time (Typ) [custom]	23 ns
Supplier Device Package	6-DFN (4x5)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	4.5 V

Part	Number of Drivers	Supplier Device Package	Driven Configuration	Channel Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Input Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
IXYS IXDD509D1	1	6-DFN (4x5)	Low-Side	Single	-55 °C	150 °C	9 A	9 A	Non-Inverting	4.5 V	30 VDC	Surface Mount	6-VDFN Exposed Pad	25 ns	23 ns
IXYS IXDD509SIAT/R	1	8-SOIC	Low-Side	Single	-55 °C	150 °C	9 A	9 A	Non-Inverting	4.5 V	30 VDC	Surface Mount	8-SOIC	25 ns	23 ns	3.9 mm	0.154 in
IXYS IXDD509PI	1	8-DIP	Low-Side	Single	-55 °C	150 °C	9 A	9 A	Non-Inverting	4.5 V	30 VDC	Through Hole	8-DIP	25 ns	23 ns			0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low-Side Gate Driver IC Non-Inverting 6-DFN (4x5)
