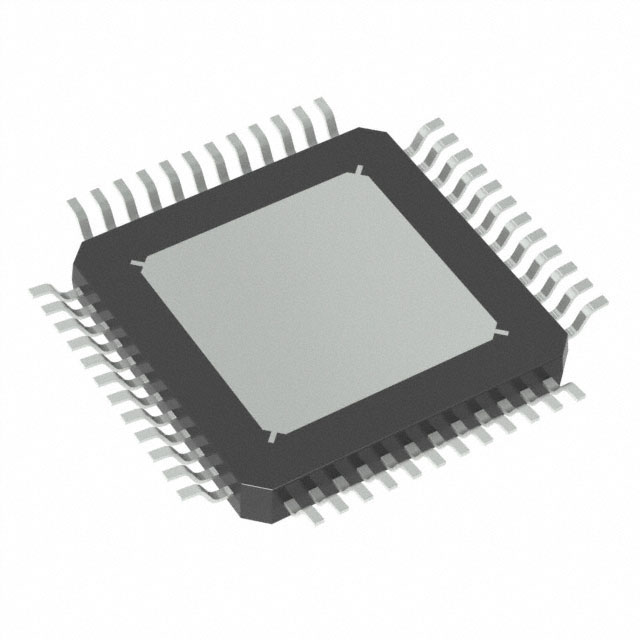

TMC6200-TA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 48TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC6200-TA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 48TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC6200-TA-T | TMC6200 Series |
|---|---|---|
| Channel Type | 3-Phase | 3-Phase |
| Current - Peak Output (Source, Sink) | 1.5 A, 1.5 A | 1.5 A |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Function | - | Motor Controller/Driver |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| High Side Voltage - Max (Bootstrap) [Max] | 85 V | 85 V |
| Input Type | CMOS | CMOS |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Drivers | 6 | 3 - 6 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad |
| Primary Attributes | - | BLDC, Servo, PMSM |
| Rise / Fall Time (Typ) [custom] | 20 ns | 20 ns |
| Rise / Fall Time (Typ) [custom] | 20 ns | 20 ns |
| Secondary Attributes | - | SPI Interface(s) |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC6200 |
| Voltage - Supply [Max] | 60 V | 60 V |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.95 | |
| 10 | $ 4.01 | |||
| 25 | $ 3.51 | |||
| 100 | $ 2.94 | |||
| 250 | $ 2.67 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.36 | |||
| Digi-Reel® | 1 | $ 5.95 | ||
| 10 | $ 4.01 | |||
| 25 | $ 3.51 | |||
| 100 | $ 2.94 | |||
| 250 | $ 2.67 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.36 | |||
| Tape & Reel (TR) | 2000 | $ 2.25 | ||
| 4000 | $ 2.17 | |||
TMC6200 Series
IC GATE DRVR HALF-BRIDGE 48TQFP
| Part | Channel Type | Driven Configuration | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Gate Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Supplier Device Package | Mounting Type | Current - Peak Output (Source, Sink) | High Side Voltage - Max (Bootstrap) [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Drivers | Input Type | Function | Utilized IC / Part | Type | Primary Attributes | Supplied Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC6200-TA | 3-Phase | Half-Bridge | 20 ns | 20 ns | N-Channel MOSFET | -40 °C | 125 ¯C | 48-TQFP Exposed Pad | 48-TQFP-EP (7x7) | Surface Mount | 1.5 A, 1.5 A | 85 V | 10 VDC | 60 V | 3 | CMOS | ||||||
Analog Devices Inc./Maxim Integrated TMC6200-TA-T | 3-Phase | Half-Bridge | 20 ns | 20 ns | N-Channel MOSFET | -40 °C | 125 ¯C | 48-TQFP Exposed Pad | 48-TQFP-EP (7x7) | Surface Mount | 1.5 A, 1.5 A | 85 V | 10 VDC | 60 V | 6 | CMOS | ||||||
Analog Devices Inc./Maxim Integrated TMC6200-BOB | Motor Controller/Driver | TMC6200 | Power Management | BLDC, PMSM, Servo | Board(s) | SPI Interface(s) |
Description
General part information
TMC6200 Series
Half-Bridge Gate Driver IC CMOS 48-TQFP-EP (7x7)
