581-M36-B
ActiveJ.W. Winco

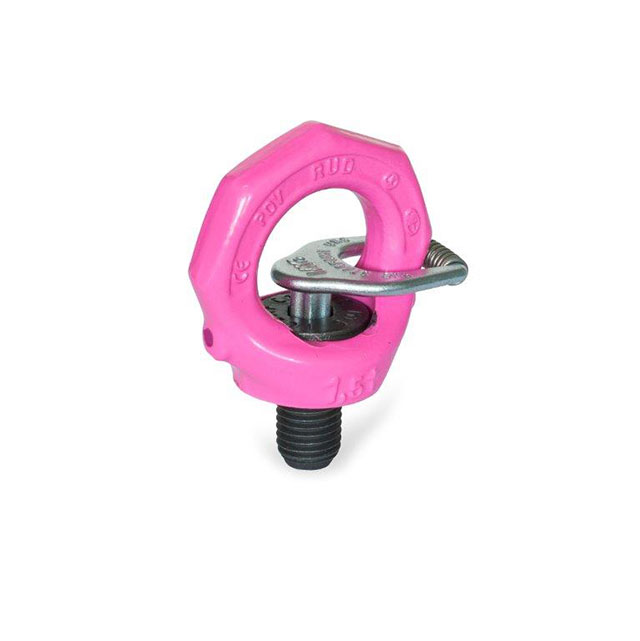

SAFETY SWIVEL LIFTING EYE BOLT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
581-M36-B
ActiveJ.W. Winco
SAFETY SWIVEL LIFTING EYE BOLT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 581-M36-B |
|---|---|
| Features | Colored Head |
| Head Diameter [diameter] | 5.31 in |
| Head Diameter [diameter] | 134.87 mm |
| Head Height | 5.31 in |
| Head Height | 134.87 mm |
| Length - Below Head [custom] | 2.13 in |
| Length - Below Head [custom] | 54.1 mm |
| Length - Overall [x] | 188.98 mm |
| Length - Overall [x] | 7.44 in |
| Thread Size | M36 |
| Type | Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 547.23 | |
Description
General part information
581-M36 Series
M36 Spade Head Bolt Drive Steel
