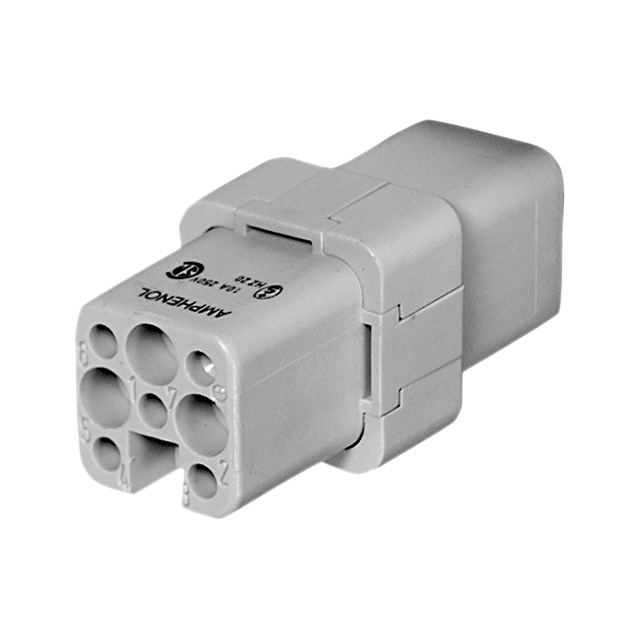

C14610B0070002

Active

Amphenol Tuchel Industrial

INSERT FEMALE 7POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 7POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0070002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Female
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	7+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Termination Style	Crimp
Voltage Rating	600 V

Part	Termination Style	Housing Material	Material Flammability Rating	Size	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Type	Connector Type	Gender	Current Rating (Amps)	Number of Positions	Voltage Rating	Number of Positions
Amphenol Tuchel Industrial C14610B0070002	Crimp	Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	A3/4	125 °C	-40 °C	Gray	C 16-3 C146 D heavy\|mate® M	Insert without Contacts	Female	15 A	7+Ground	600 V
Amphenol Tuchel Industrial C14610B0078012	Crimp		UL94 V-0						Insert without Contacts	Female				7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 7+Ground Position Crimp
