78RB06T

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.15A 30V

Part	Contact Finish	Mounting Type	Electrical Life	Circuit	Actuator Type	Contact Material	Height Above Board	Height Above Board	Body Material	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Actuator Level	Washable	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mechanical Life	Length [x]	Length [x]
Grayhill Inc. 78RB06T	Gold	Through Hole	2000 Steps	SPST	Slide (Standard)	Copper Alloy	0.265 in	6.73 mm	Thermoplastic	6	0.1 in	Full	2.54 mm	Flush, Recessed		PC Pin	85 °C	-40 °C	30 VDC	2000 Cycles	17.27 mm	0.68 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

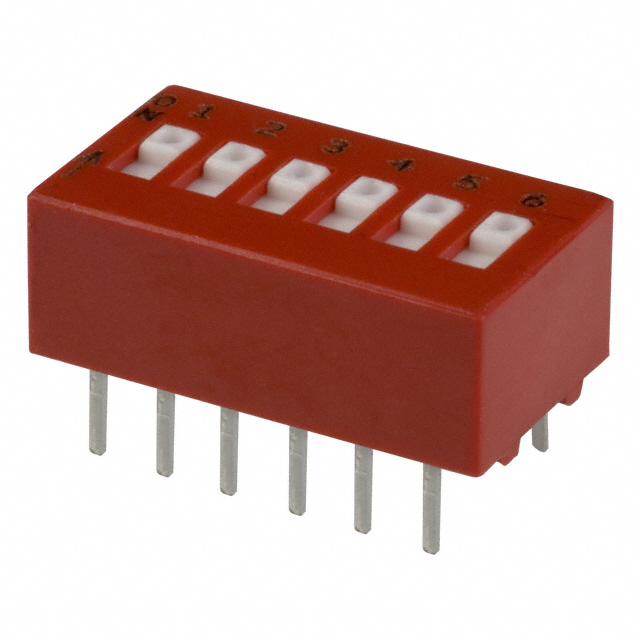

Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 150mA 30VDC

Technical documentation and resources
