IN-C33CTOIR

Active

Inolux

TOP VIEW 3535 3.5X3.5X2.0

Search across all available documentation for this part.

Active

Inolux

TOP VIEW 3535 3.5X3.5X2.0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

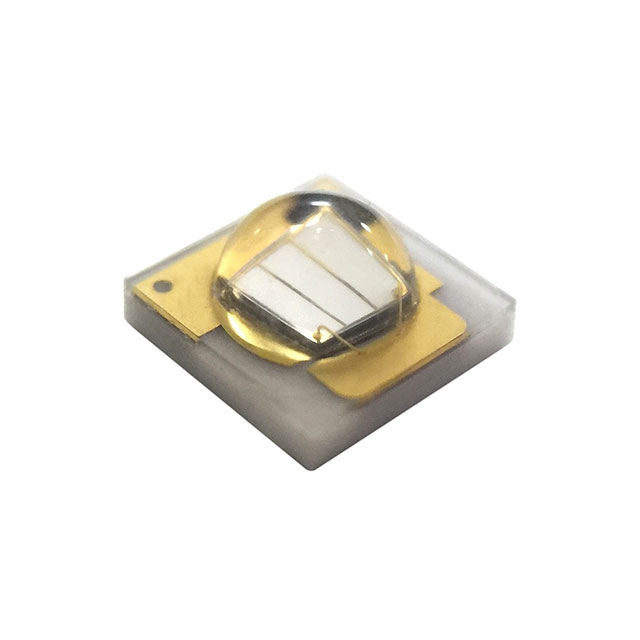

Infrared (IR) Emitter 850nm ~ 860nm 2.4V 1A 120° 1414 (3535 Metric)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	IN-C33CTOIR	IN-C33 Series

Color	-	Yellow, Red, Blue
Current - DC Forward (If) (Max)	1 A	1 A
Current - Max	-	700 mA
Current - Test	-	350 mA
Height - Seated (Max)	-	2.46 - 2.93 mm
Height - Seated (Max)	-	0.097 - 0.115 "
Lumens/Watt @ Current - Test	-	21 - 78 lm/W
Luminous Flux @ Current/Temperature	-	30 - 60 lm
Luminous Flux @ Current/Temperature	-	30 lm
Luminous Flux @ Current/Temperature	-	15 lm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	125 ¯C	125 ¯C
Orientation	Top View	Top View
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension	-	3.5 mm
Size / Dimension	-	3.5 mm
Size / Dimension	-	0.138 in
Size / Dimension	-	0.138 in
Supplier Device Package	-	3535
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	120 °	60 - 120 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	2.4 V	2.2 - 3.2 V
Wavelength	-	455 - 625 nm
Wavelength [Max]	860 nm	860 nm
Wavelength [Min]	850 nm	850 nm

LED IN-C33 YELLOW 590NM 3535

Part	Current - Test	Mounting Type	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Wavelength	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Viewing Angle [custom]	Type	Orientation	Current - DC Forward (If) (Max)	Wavelength [Max]	Wavelength [Min]	Operating Temperature
Inolux IN-C33BTLY	350 mA	Surface Mount	3535 Metric	1414	2.93 mm	0.115 "	3535	700 mA	2.2 V	Yellow	3.5 mm	3.5 mm	0.138 in	0.138 in	60 °	60 lm	78 lm/W	590 nm
Inolux IN-C33CTLR	350 mA	Surface Mount	3535 Metric	1414			3535	700 mA	2.2 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in	120 °	50 lm	65 lm/W	625 nm
Inolux IN-C33BTLRB	350 mA	Surface Mount	3535 Metric	1414	2.93 mm	0.115 "	3535	700 mA	3.2 V	Blue	3.5 mm	3.5 mm	0.138 in	0.138 in	60 °		21 lm/W	455 nm	30 lm	15 lm
Inolux IN-C33ETLR	350 mA	Surface Mount	3535 Metric	1414	2.46 mm	0.097 "	3535	700 mA	2.2 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in		50 lm	65 lm/W	625 nm			90 °
Inolux IN-C33CTOIR		Surface Mount	3535 Metric	1414					2.4 V						120 °							Infrared (IR)	Top View	1 A	860 nm	850 nm	125 ¯C
Inolux IN-C33BTLB	350 mA	Surface Mount	3535 Metric	1414	2.93 mm	0.115 "	3535	700 mA	3.2 V	Blue	3.5 mm	3.5 mm	0.138 in	0.138 in	60 °	30 lm	27 lm/W	465 nm
