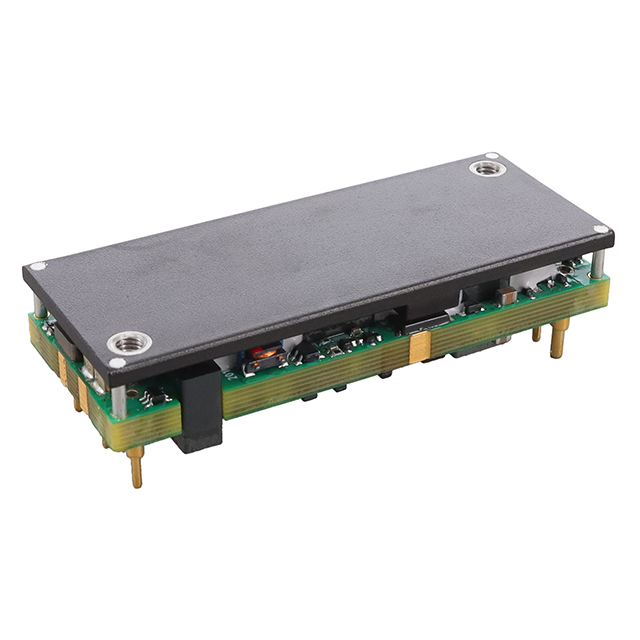

AVO250-48S28B-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 28V 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AVO250-48S28B-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 28V 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AVO250-48S28B-6L |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 93 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 250 W |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 66.60 | |
| 5 | $ 66.08 | |||
| 10 | $ 65.56 | |||
| 25 | $ 63.47 | |||
| 40 | $ 60.35 | |||
Description
General part information
AVO250 Series
Isolated Module DC DC Converter 1 Output 28V 9A 36V - 75V Input
