MAX12558ETK+

Active

Analog Devices Inc./Maxim Integrated

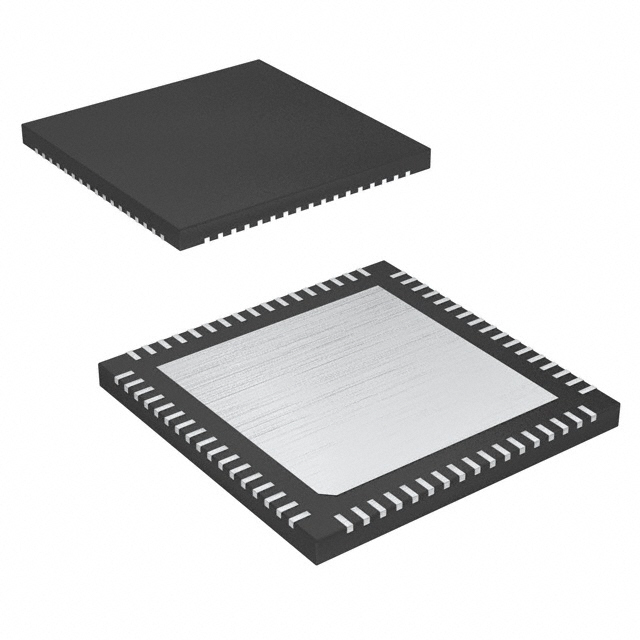

IC ADC 14BIT PIPELINED 68TQFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC ADC 14BIT PIPELINED 68TQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC ADC 14BIT PIPELINED 68TQFN

Part	Features	Architecture	Mounting Type	Supplier Device Package	Number of Bits	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Reference Type	Data Interface	Configuration	Package / Case	Ratio - S/H:ADC	Number of Inputs	Input Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Sampling Rate (Per Second)	Number of A/D Converters
Analog Devices Inc./Maxim Integrated MAX12558ETK+	Simultaneous Sampling	Pipelined	Surface Mount	68-TQFN (10x10)	14	3.15 V	3.6 V	85 °C	-40 °C	External, Internal	Parallel	S/H-ADC	68-WFQFN Exposed Pad	1:1	2	Differential, Single Ended	3.15 V	3.6 V	80 M	2
Analog Devices Inc./Maxim Integrated MAX12558ETK+T	Simultaneous Sampling	Pipelined	Surface Mount	68-TQFN (10x10)	14	3.15 V	3.6 V	85 °C	-40 °C	External, Internal	Parallel	S/H-ADC	68-WFQFN Exposed Pad	1:1	2	Differential, Single Ended	3.15 V	3.6 V	80 M	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 Bit Analog to Digital Converter 2 Input 2 Pipelined 68-TQFN (10x10)

Technical documentation and resources

No documents available
