920-0172-01

Active

Schmartboard, Inc.

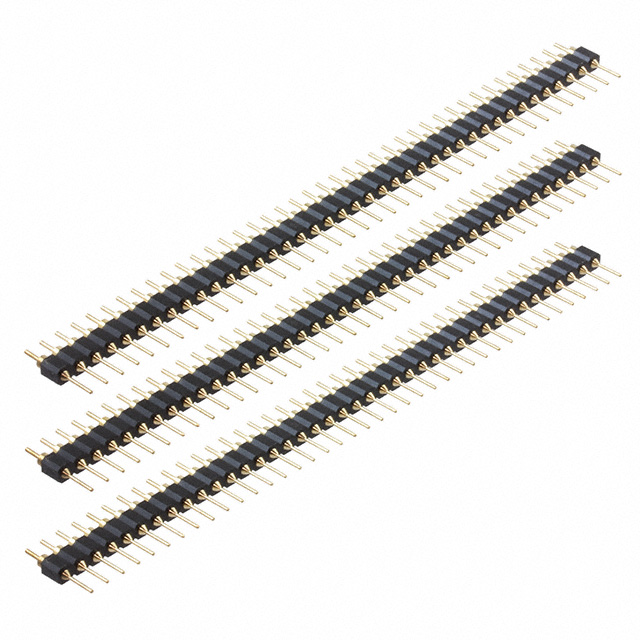

CONN HEADER VERT 40P 2.54MM 3PC

Search across all available documentation for this part.

Active

Schmartboard, Inc.

CONN HEADER VERT 40P 2.54MM 3PC

Technical Specifications

Parameters and characteristics for this part

Specification	920-0172-01

Connector Type	Header
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

CONN HEADER VERT 40P 2.54MM 3PC

Part	Shrouding	Material Flammability Rating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Mounting Type	Termination	Contact Shape	Fastening Type	Number of Positions Loaded	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Insulation Color
Schmartboard, Inc. 920-0172-01	Unshrouded	UL94 V-0	3 A	2.54 mm	0.1 in	Header	Through Hole	Solder	Circular	Push-Pull	All	1	Male Pin	-40 °C	105 ░C	0.1 in	2.54 mm	Brass	40	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.00

General part information

Connector Header Through Hole 40 position 0.100" (2.54mm)
