3157-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.

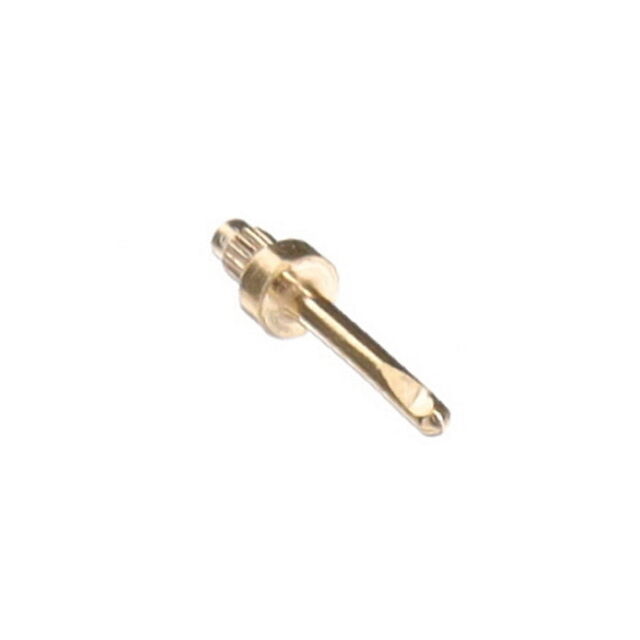

CONN PC PIN CIRC .023DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3157-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .023DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3157-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.045 in |
| Flange Diameter [diameter] | 1.14 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.18 mm |
| Length - Above Flange [x] | 0.125 in |
| Length - Overall | 4.83 mm |
| Length - Overall | 0.19 in |
| Mounting Hole Diameter | 0.66 mm |
| Mounting Hole Diameter | 0.026 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Pin Size - Below Flange [diameter] | 0.023 in |
| Pin Size - Below Flange [diameter] | 0.58 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| 3000 | $ 0.38 | |||
Description
General part information
3157-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
Documents
Technical documentation and resources
