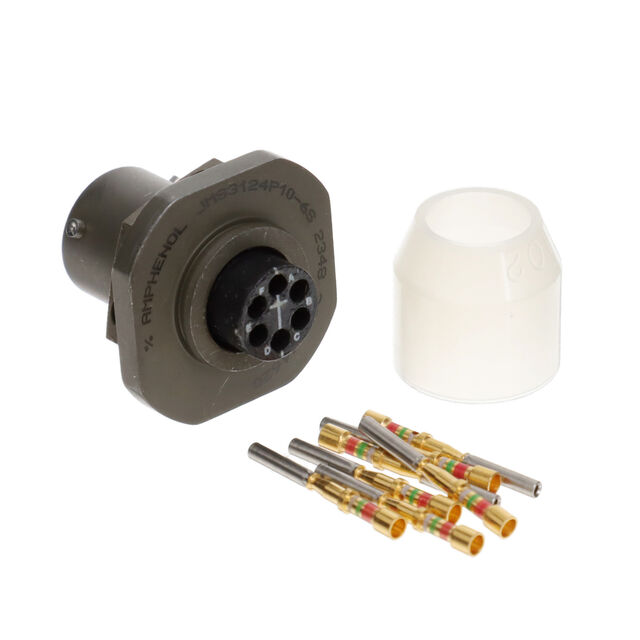

MS3124P10-6S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124P10-6S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124P10-6S | MS3124P10 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Potted | Potted |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 155.59 | |
| 10 | $ 142.78 | |||
| 25 | $ 137.29 | |||
| 50 | $ 132.71 | |||
MS3124P10 Series
RECEPT
| Part | Grade | Voltage Rating | Mounting Feature | Number of Positions | Shell Finish | Shell Size - Insert | Orientation | Insert Material | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Contact Material | Applications | Connector Type | Ingress Protection | Color | Termination | Shell Material | Qualification | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Features | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124P10-6P(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124P10-6P | Military | 600 VAC | Bulkhead - Front Side Nut | 6 | Olive Drab Chromate over Cadmium | 10-6 | N | Neoprene | Gold | Bayonet Lock | 7.5 A | Copper Alloy | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Male Pins, Receptacle | Environment Resistant | Olive Drab | Crimp | Aluminum | MIL-DTL-26482 Series I | Unshielded | -55 °C | 125 °C | Potted | Metal |
Amphenol Industrial Operations MS3124P10-6S | Military | 600 VAC | Bulkhead - Front Side Nut | 6 | Olive Drab Chromate over Cadmium | 10-6 | N | Neoprene | Gold | Bayonet Lock | 7.5 A | Copper Alloy | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Receptacle, Female Sockets | Environment Resistant | Olive Drab | Crimp | Aluminum | MIL-DTL-26482 Series I | Unshielded | -55 °C | 125 °C | Potted | Metal |
Description
General part information
MS3124P10 Series
6 Position Circular Connector Receptacle, Female Sockets Crimp
