337-048-521-804
ActiveEDAC Inc.

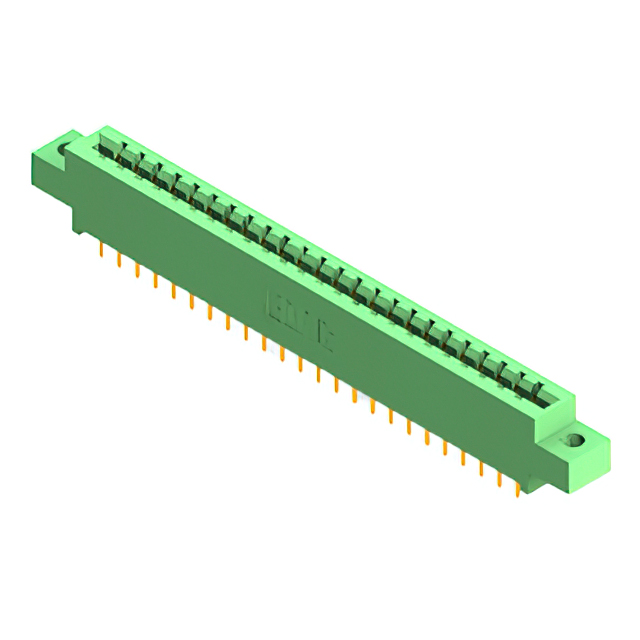

CARD EDGE CONNECTOR, 48 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-048-521-804
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 48 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-048-521-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-048 Series
...
| Part | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Gender | Material - Insulation | Pitch [x] | Pitch [x] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination Rows | Features | Read Out | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Termination | Contact Finish | Color | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 48 | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Card Extender | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | 24 | Solder | Gold | Green | ||||
EDAC Inc. | 48 | -40 °C | 105 ░C | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Card Extender | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | 24 | Solder Eyelet(s) | Gold | Green | 3.25 mm | 0.128 in | |||
EDAC Inc. | 48 | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | 24 | Wire Wrap | Gold | Green | 3.25 mm | 0.128 " | |||
EDAC Inc. | 48 | -40 °C | 105 ░C | Top Mount Opening Unthreaded | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Card Extender | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | 24 | Solder | Gold | Green | 3.96 mm | 0.156 in | ||
EDAC Inc. | 48 | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | 24 | Wire Wrap | Gold | Green | 3.25 mm | 0.128 " | |||
EDAC Inc. | 48 | -40 °C | 105 ░C | Top Mount Opening Unthreaded | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | 24 | Solder | Gold | Green | 3.96 mm | 0.156 in | |||
EDAC Inc. | 48 | -40 °C | 105 ░C | Top Mount Opening Unthreaded | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | 24 | Solder | Gold | Green | 3.96 mm | 0.156 in | |||
EDAC Inc. | 48 | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole Right Angle | 24 | Wire Wrap | Gold | Green | |||||
EDAC Inc. | 48 | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Card Guides | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole Right Angle | 24 | Wire Wrap | Gold | Green | ||||
EDAC Inc. | 48 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Polyester Thermoplastic | 0.156 in | 3.96 mm | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Dual | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | 24 | Solder | Gold | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.25 | |
Description
General part information
337-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
