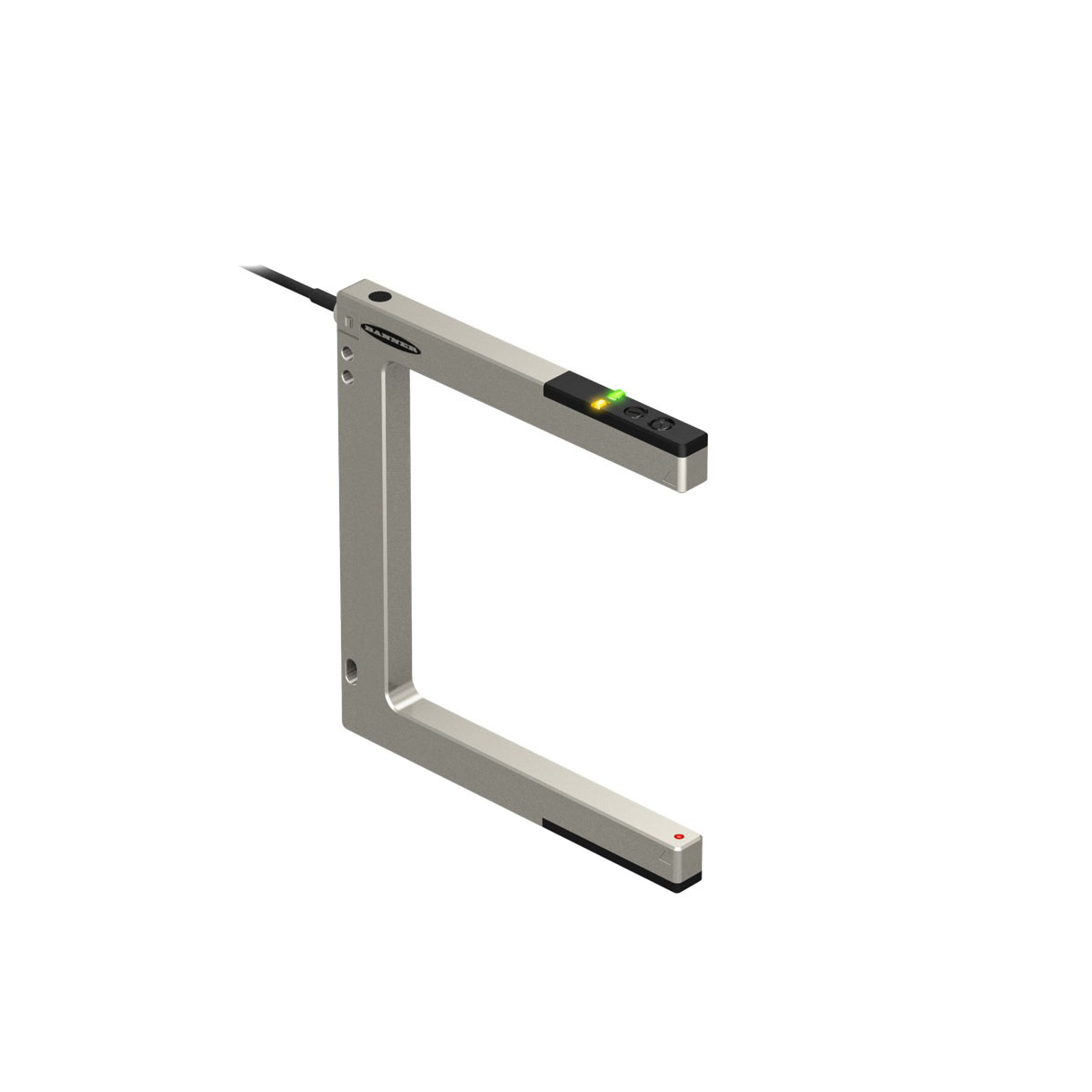

SLM120B6

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Technical Specifications

Parameters and characteristics for this part

Specification	SLM120B6

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	500 µs
Sensing Distance	120 mm
Sensing Distance	4.724 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Connection Method	Cable Length	Cable Length	Sensing Distance	Sensing Distance	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
BANNER ENGINEERING SLM120B6	500 µs	Cable	78.74 in	2 m	120 mm	4.724 in	LED	30 VDC	10 VDC	Dark-ON/Light-ON NPN/PNP Selectable	-20 C	60 °C	NEMA 6P IEC IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 213.00

General part information

Optical Sensor 4.724" (120mm) NPN/PNP - Dark-ON/Light-ON - Selectable
