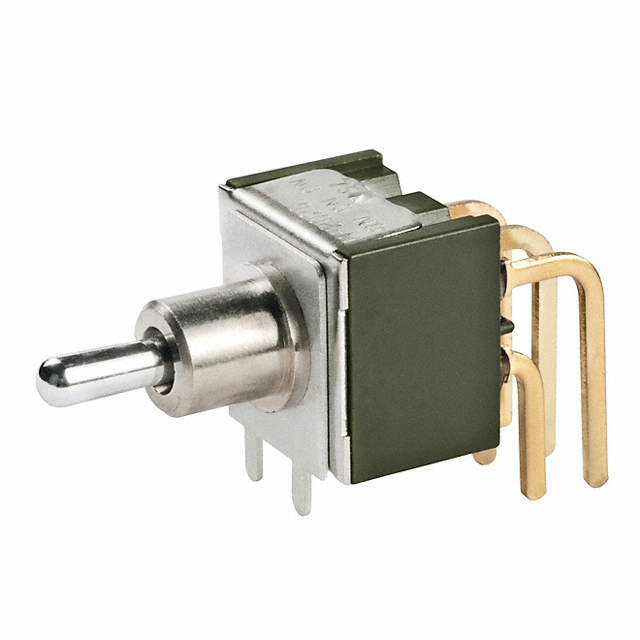

Specification	M2024S2A2G30

Actuator Length	6.86 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SP3T
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2024S2 Series

Part	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Actuator Type	Bushing Thread	Mounting Type	Actuator Length	Voltage Rating - AC	Features	Current Rating	Circuit	Illumination	Electrical Life (Cycles)	Actuator Material
NKK Switches M2024S2A2G30	6.5 mm	Circular	28 V	On-On-On	85 °C	-30 °C	PC Pin	Standard Round	Unthreaded	Right Angle Through Hole	6.86 mm	28 V	Jumper needed to achieve triple throw	0.4 VA	SP3T	Non-Illuminated	50000	Brass Chrome Plated
NKK Switches M2024S2A2G40	6.5 mm	Circular	28 V	On-On-On	85 °C	-30 °C	PC Pin	Standard Round	Unthreaded	Right Angle Through Hole Vertical	6.86 mm	28 V	Jumper needed to achieve triple throw	0.4 VA	SP3T	Non-Illuminated	50000	Brass Chrome Plated
NKK Switches M2024S2A2W13	6.5 mm	Circular	30 V	On-On-On	85 °C	-30 °C	PC Pin	Standard Round	Unthreaded	Through Hole	6.86 mm	125 V	Jumper needed to achieve triple throw	3 A 6 A	SP3T	Non-Illuminated	25000	Brass Chrome Plated
