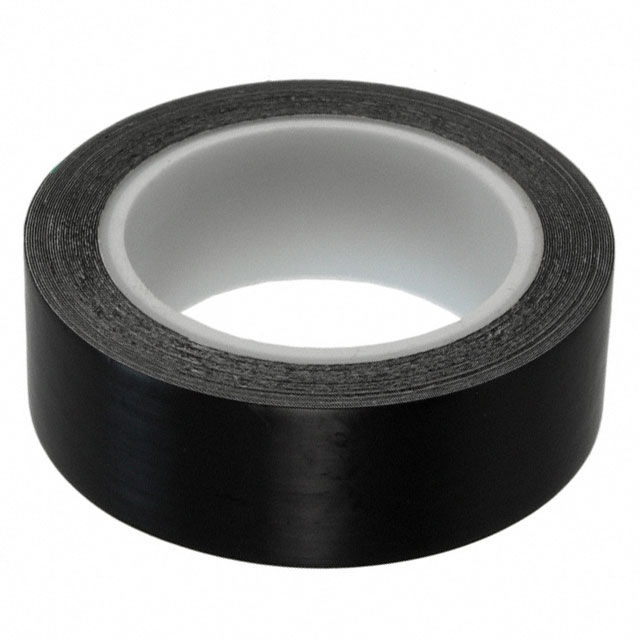

1318-1B-1-72

Active

3M (TC)

TAPE FILM BLACK 1"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1318-1B-1-72

Active

3M (TC)

TAPE FILM BLACK 1"X72YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1318-1B-1-72

Backing, Carrier	Polyester
Color	Black
Length	66 m
Length	216 ft
Length	72 yd
Tape Type	Film
Temperature Range	130 °C
Temperature Range	266 °F
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Width [x]	25.4 mm
Width [x]	1 in

1318 Series

Part	Temperature Range	Temperature Range	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Tape Type	Width [y]	Width [y]	Backing, Carrier	Color	Length	Length	Length	Width	Width	Width	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Width
3M (TC) 3M 1318-1 2.25" X 72YD-YELLOW	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film	57.15 mm	2.25 in	Polyester Film	Yellow	66 m	216 ft	72 yd
3M (TC) 3M 1318-1Y 1.375" X 72YD	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Yellow	66 m	216 ft	72 yd	1.38 "		34.93 mm	60 Months	Date of Manufacture
3M (TC) 1318-1B-0.875-72	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Black	66 m	216 ft	72 yd	0.88 in	0.875 in	22.35 mm
3M (TC) 3M 1318-1 10" X 72YD-YELLOW	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Yellow	66 m	216 ft	72 yd			254 mm			10 in
3M (TC) 3M 1318-1 5" X 72YD-YELLOW	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film	127 mm	5 in	Polyester Film	Yellow	66 m	216 ft	72 yd
3M (TC) 1318-1Y-4-72	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Yellow	66 m	216 ft	72 yd						4 "	101.6 mm
3M (TC) 3M 1318-1 1.375" X 72YD-BLACK	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Black	66 m	216 ft	72 yd	1.38 "		34.93 mm
3M (TC) 1318-1B-1-72	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm		1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester	Black	66 m	216 ft	72 yd						1 in	25.4 mm
3M (TC) 3M 1318-1 1.75" X 72YD-YELLOW	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Yellow	66 m	216 ft	72 yd	1.75 in		44.45 mm					1 3/4
3M (TC) 1318-1Y-0.125-72(4)	130 °C	266 °F	1.5 mils	0.0015 in	0.038 mm	Acrylic	1 mils	0.025 mm	0.001 "	2.5 mils	0.064 mm	0.0025 "	Film			Polyester Film	Yellow	66 m	216 ft	72 yd	0.13 in	0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.55
		10	$ 55.11
		100	$ 45.81

Description

General part information

1318 Series

Film Tape Adhesive Black 1.00" (25.40mm) X 216' (66.0m) 72 yds
