15-000673

Active

Amphenol CONEC

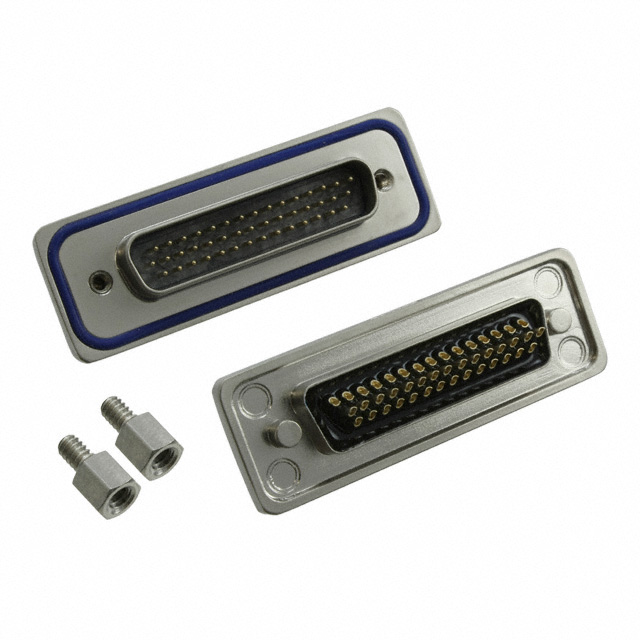

CONN D-SUB HD PLUG 44POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-000673

Active

Amphenol CONEC

CONN D-SUB HD PLUG 44POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-000673

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Voltage Rating	60 VDC
Wire Gauge	22 AWG

15-0006 Series

Part	Contact Finish	Dielectric Material	Connector Style	Shell Material, Finish	Ingress Protection	Contact Material	Material Flammability Rating	Connector Type	Flange Feature	Number of Rows	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Current Rating (Amps)	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 15-000633	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	2	Signal	8 çin	0.203 çm	20 AWG	7.5 A	Black	125 VDC	-25 °C	105 ░C	B DB	3
Amphenol CONEC 15-000673	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Male Pins Plug	Female Screwlock (4-40) Mating Side	3	Signal	8 çin	0.203 çm	22 AWG	3 A	Black	60 VDC	-25 °C	105 ░C			44	3	B DB
Amphenol CONEC 15-000623	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	2	Signal	8 çin	0.203 çm	20 AWG	7.5 A	Black	125 VDC	-25 °C	105 ░C			15			2
Amphenol CONEC 15-000613	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	2	Signal	8 çin	0.203 çm	20 AWG	7.5 A	Black	125 VDC	-40 °C	105 ░C	DE E	1	9
Amphenol CONEC 15-000603	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Male Pins Plug	Female Screwlock (4-40) Mating Side	2	Signal	8 çin	0.203 çm	20 AWG	7.5 A	Black	125 VDC	-25 °C	105 ░C			37				4 (DC C)
Amphenol CONEC 15-000693	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	3	Signal	8 çin	0.203 çm	22 AWG	3 A	Black	60 VDC	-25 °C	105 ░C			15		DE E			1	High Density
Amphenol CONEC 15-000653	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Male Pins Plug	Female Screwlock (4-40) Mating Side	3	Signal	8 çin	0.203 çm	22 AWG	3 A	Black	60 VDC	-25 °C	105 ░C			15		DE E			1	High Density
Amphenol CONEC 15-000663	Gold	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Nickel Plated Zinc Die Cast	IP67 - Dust Tight Waterproof	Copper Alloy	UL94 V-0	Male Pins Plug	Female Screwlock (4-40) Mating Side	3	Signal	8 çin	0.203 çm	22 AWG	3 A	Black	60 VDC	-25 °C	105 ░C			26			2	(DA A) High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.13
		10	$ 29.01
		25	$ 27.76
		50	$ 26.86
		100	$ 25.97
		250	$ 24.53

Description

General part information

15-0006 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
