3002416

Active

Phoenix Contact

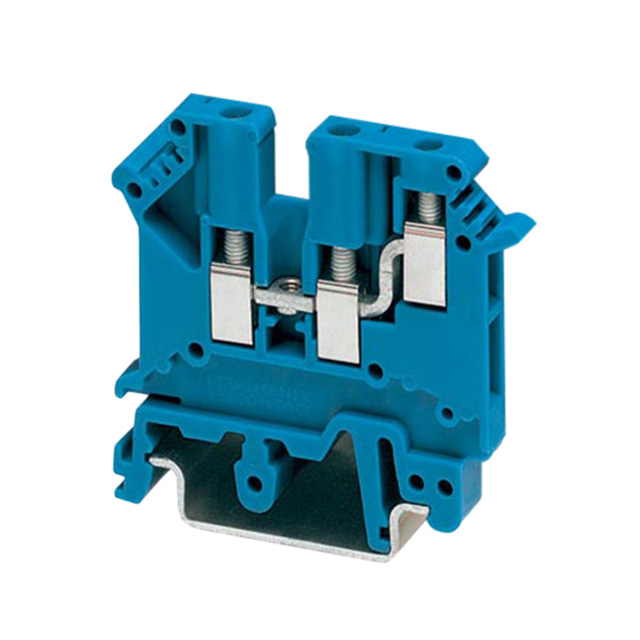

DIN RAIL TERMINAL BLOCKS UK 3-TWIN BU 5.2MM TWIN BLUE

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS UK 3-TWIN BU 5.2MM TWIN BLUE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks UK 2 5 N OG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3002416	UK Series

Color	Blue	Blue, Gray
Current - IEC	24 A	16 - 57 A
Current - UL	20 A	20 - 65 A
Disconnect Type	-	Switch, Knife
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-2, UL94 V-0
Number of Levels	1	1
Number of Positions	-	2
Stripping Length	8 mm	7 - 10 mm
Terminal - Width [y]	5.2 mm	5.2 - 10.2 mm
Termination Style	Screw	Screw
Type	Feed Through	Feed Through, Disconnect
Voltage - IEC	400 V	400 - 800 V
Voltage - UL	-	600 V
Voltage - UL [custom]	150 V	150 - 300 V
Wire Gauge or Range - AWG [Max]	30 AWG	20 - 30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	6 - 12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 - 16 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 - 0.5 mm²

DIN Rail Terminal Blocks UK 2 5 N OG

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Termination Style	Type	Terminal - Width [y]	Stripping Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Current - IEC	Number of Positions	Number of Levels	Voltage - IEC	Material - Insulation	Voltage - UL [custom]	Color	Voltage - UL	Disconnect Type
Phoenix Contact 3026780	30 AWG	12 AWG	20 A	Screw	Feed Through	5.2 mm	7 mm	0.2 mm²	4 mm²	UL94 V-2	24 A	2	1	800 V	Nylon, Polyamide (PA)	300 V
Phoenix Contact 3002416	30 AWG	12 AWG	20 A	Screw	Feed Through	5.2 mm	8 mm	0.2 mm²	2.5 mm²	UL94 V-0	24 A		1	400 V	Nylon, Polyamide (PA)	150 V	Blue
Phoenix Contact 3005073	24 AWG	6 AWG	65 A	Screw	Feed Through	10.2 mm	10 mm	0.5 mm²	16 mm²	UL94 V-0	57 A	2	1	800 V	Nylon, Polyamide (PA)		Gray	600 V
Phoenix Contact 3003017	28 AWG	12 AWG	20 A	Screw	Feed Through	6.2 mm	8 mm	0.2 mm²	4 mm²	UL94 V-2	32 A	2	1	800 V	Nylon, Polyamide (PA)		Gray	600 V
Phoenix Contact 3000563	20 AWG	10 AWG		Screw	Disconnect	6.2 mm	8 mm	0.2 mm²	6 mm²	UL94 V-0	16 A	2	1	500 V	Nylon, Polyamide (PA)		Gray	600 V	Knife, Switch
