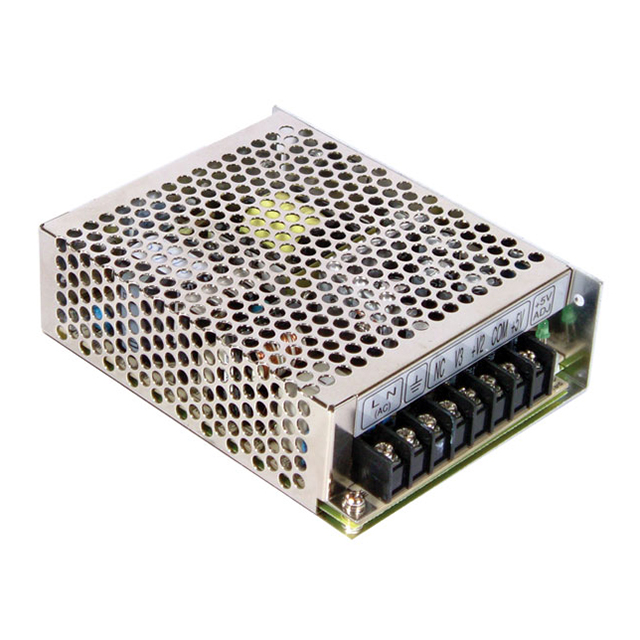

Specification	RT-65C

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	5 A
Current - Output 2	2.2 A
Current - Output 3	500 mA
Efficiency	78 %
Features	Universal Input, Adjustable Output
Minimum Load Required	Yes
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	66 W
Size / Dimension Height	1.5 in
Size / Dimension Length	5.08 in
Size / Dimension Width	3.86 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	88 VAC
Voltage - Input (DC) Maximum	373 VDC
Voltage - Input (DC) Minimum	125 V
Voltage - Isolation	3 kV
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

RT-65 Series

Part	Features	Applications	Voltage - Output 2	Voltage - Output 3	Voltage - Input (DC) Minimum	Voltage - Input (DC) Maximum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Number of Outputs	Power (Watts)	Mounting Type	Current - Output 3	Current - Output 2	Voltage - Output 1	Approval Agency	Voltage - Isolation	Type	Efficiency	Current - Output 1	Minimum Load Required
MEAN WELL USA Inc. RT-65C	Adjustable Output Universal Input	ITE (Commercial)	15 V	-15 V	125 V	373 VDC	264 V	88 VAC	70 °C	-25 °C	1.5 in	5.08 in	3.86 in	3	66 W	Chassis Mount	500 mA	2.2 A	5 V	CB CE cURus TUV	3 kV	Enclosed	78 %	5 A	Yes
MEAN WELL USA Inc. RT-65B	Adjustable Output Universal Input	ITE (Commercial)	12 V	-12 V	125 V	373 VDC	264 V	88 VAC	70 °C	-25 °C	1.5 in	5.08 in	3.86 in	3	65 W	Chassis Mount	500 mA	2.8 A	5 V	CB CE cURus TUV	3 kV	Enclosed	77 %	5 A	Yes
MEAN WELL USA Inc. RT-65D	Adjustable Output Universal Input	ITE (Commercial)	24 V	12 V	125 V	373 VDC	264 V	88 VAC	70 °C	-25 °C	1.5 in	5.08 in	3.86 in	3	68 W	Chassis Mount	1 A	1.5 A	5 V	CB CE cURus TUV	3 kV	Enclosed	79 %	4 A	Yes
