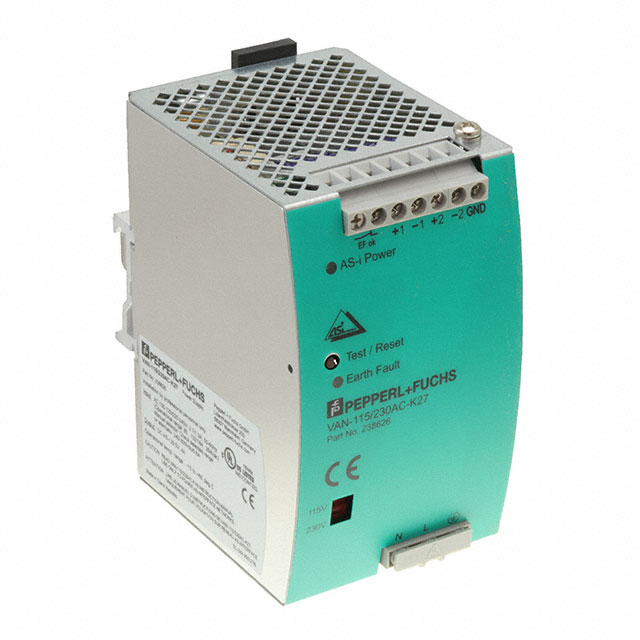

VAN-115/230AC-K27

Active

PEPPERL+FUCHS

AS-INTERFACE (EXCLUDING SENSORS)

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

AS-INTERFACE (EXCLUDING SENSORS)

Technical Specifications

Parameters and characteristics for this part

AS-INTERFACE (EXCLUDING SENSORS)

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Number of Outputs	Voltage - Output 1	Approval Agency	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Efficiency	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
PEPPERL+FUCHS VAN-115/230AC-K27	-10 °C	70 °C	4 A	132 VAC, 264 VAC	85 VAC, 184 VAC	IP20	1	30.5 V	CE, cULus	AC or DC	240 V	300 V	90 %	ITE (Commercial)	124 mm	4.88 "	73 mm	2.87 "	4.02 in	102 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AS-INTERFACE (EXCLUDING SENSORS)
