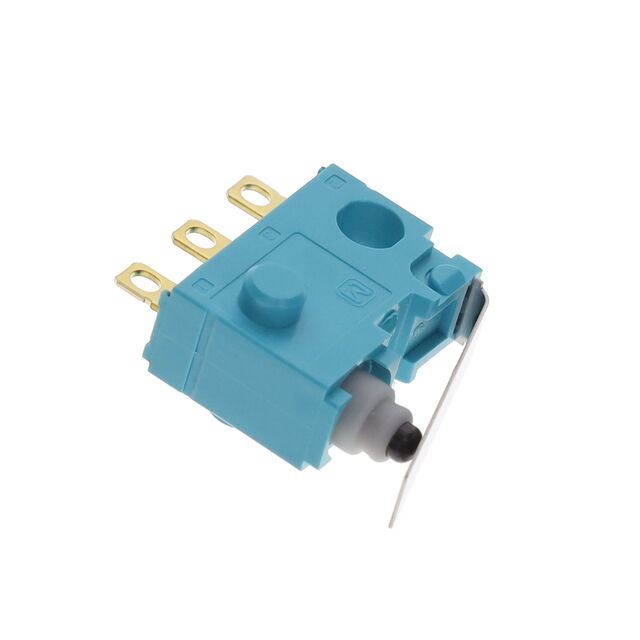

ASQ10417
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
ASQ10417
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.1A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQ10417 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 200000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 173 gf |
| Operating Position [x] | 0.366 " |
| Operating Position [x] | 9.3 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel [x] | 2.6 mm |
| Overtravel [x] | 0.102 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.84 | |
| 10 | $ 3.18 | |||
| 25 | $ 2.95 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.63 | |||
| 250 | $ 2.44 | |||
| 500 | $ 2.31 | |||
| 1000 | $ 2.18 | |||
Description
General part information
ASQ104 Series
Switch SPDT Chassis Mount
