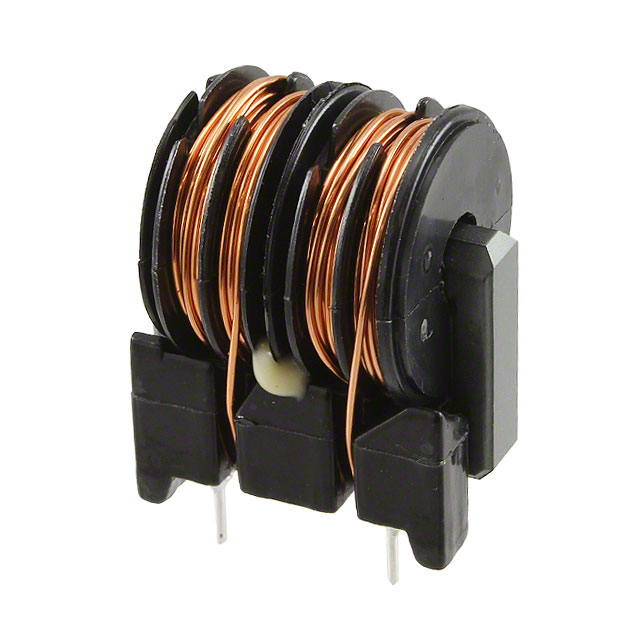

SS26V-060640

Active

KEMET

CMC 64MH 600MA 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0030_SS26V.pdf Datasheet +1

SS26V-060640

Active

KEMET

CMC 64MH 600MA 2LN TH

Deep-Dive with AI

DocumentsKEM_LF0030_SS26V.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS26V-060640

Current Rating (Max) [Max]	600 mA
DC Resistance (DCR) (Max) [Max]	1.8 Ohm
Filter Type	Power Line
Height (Max)	30.5 mm
Height (Max)	1.201 in
Inductance @ Frequency	64 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	26 mm
Size / Dimension [x]	1.024 in
Size / Dimension [y]	20.5 mm
Size / Dimension [y]	0.807 in
Voltage Rating - AC	250 V

SS26V Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Inductance @ Frequency	Height (Max)	Height (Max)	DC Resistance (DCR) (Max) [Max]	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage Rating - AC	Number of Lines	Current Rating (Max) [Max]
KEMET SS26V-R180123	120 °C	-25 °C	4 Lead	Vertical	12.3 mH	30.5 mm	1.201 in	300 mOhm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	1.8 A
KEMET SS26V-060640	120 °C	-25 °C	4 Lead	Vertical	64 mH	30.5 mm	1.201 in	1.8 Ohm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	600 mA
KEMET SS26V-050880	120 °C	-25 °C	4 Lead	Vertical	88 mH	30.5 mm	1.201 in	2.4 Ohm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	500 mA
KEMET SS26V-200076	120 °C	-25 °C	4 Lead	Vertical	7.6 mH	30.5 mm	1.201 in	250 mOhm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	2 A
KEMET SS26V-R060860	120 °C	-25 °C	4 Lead	Vertical	86 mH	30.5 mm	1.201 in	1.8 Ohm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	600 mA
KEMET SS26V-R300038	120 °C	-25 °C	4 Lead	Vertical	3.8 mH	30.5 mm	1.201 in	100 mOhm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	3 A
KEMET SS26V-100250	120 °C	-25 °C	4 Lead	Vertical	25 mH	30.5 mm	1.201 in	700 mOhm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	1 A
KEMET SS26V-070510	120 °C	-25 °C	4 Lead	Vertical	1 kHz 51 mH	30.5 mm	1.201 in	1.4 Ohm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	700 mA
KEMET SS26V-R070680	120 °C	-25 °C	4 Lead	Vertical	68 mH	30.5 mm	1.201 in	1.4 Ohm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	700 mA
KEMET SS26V-R200102	120 °C	-25 °C	4 Lead	Vertical	10.2 mH	30.5 mm	1.201 in	250 mOhm	Power Line	26 mm	20.5 mm	1.024 in	0.807 in	Through Hole	250 V	2	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.78
		10	$ 2.36
		25	$ 2.18
		70	$ 1.95
		140	$ 1.62
		280	$ 1.57
		490	$ 1.48
		980	$ 1.39
		2450	$ 1.34

Description

General part information

SS26V Series

64 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.8Ohm

Documents

Technical documentation and resources

KEM_LF0030_SS26V.pdf

Datasheet

SS26V-060640 Spec

Datasheet
