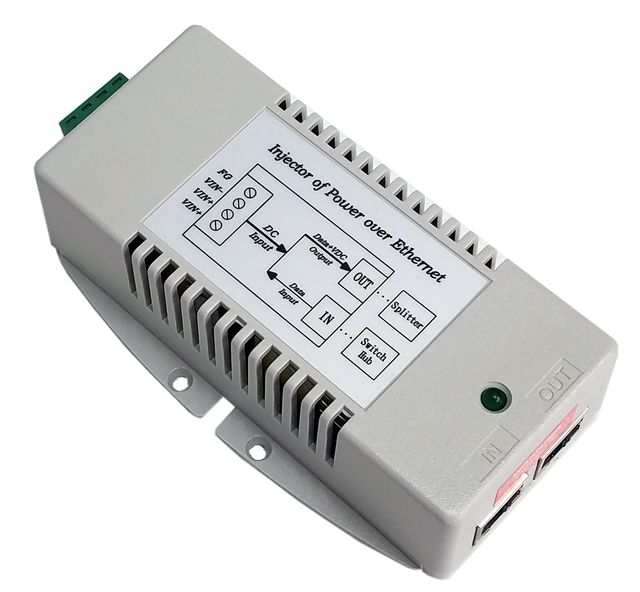

TP-DCDC-4856GD-VHP

Active

Tycon Systems Inc.

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

Search across all available documentation for this part.

TP-DCDC-4856GD-VHP

Active

Tycon Systems Inc.

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-DCDC-4856GD-VHP	TP-DCDC Series

Approval Agency	FCC, TUV	FCC, TUV, CSA, TUV, FCC
Compliance	-	IEEE802.3at, IEEE802.3af, IEEE802.3bt
Current - Output	-	1 - 900 A
Data Rate	-	10 - 1000 Mbps
Data Rate	-	10 Mbps
Data Rate	-	100 Mbps
Efficiency	80 %	72 - 85 %
Features	-	SCP, OCP, OVP, OTP
Input Connector	-	RJ45 (Data, Power)
Mounting Type	Chassis Mount	Chassis Mount, Desktop
Note	-	AC Power Cord Included
Number of Ports	-	1 - 2
Operating Temperature [Max]	60 °C	50 - 70 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Output Connector	-	RJ45 (Data, Power), USB (Power)
Power (Watts) - Per Port	-	17 - 70 W
Size / Dimension	-	75 - 76.2 mm
Size / Dimension	-	35.6 - 38 mm
Size / Dimension [x]	124.5 mm	86.4 - 125 mm
Size / Dimension [x]	4.9 in	3.4 - 4.92 in
Size / Dimension [y]	76.2 mm	76.2 - 88.9 mm
Size / Dimension [y]	3 "	2.95 - 3.5 "
Size / Dimension [z]	38.1 mm	38.1 - 39.9 mm
Size / Dimension [z]	1.5 "	1.4 - 1.57 "
Standard Number	-	60950-1, 62368-1
Type	-	Passive Injector
Voltage - Input	-	15 - 72 V
Voltage - Input	-	9 - 36 V
Voltage - Input	-	5 VDC
Voltage - Output	-	24 - 56 V

TP-DCDC Series

DC/DC CONVERTER 56V 70W

Part	Power (Watts) - Per Port	Approval Agency	Number of Ports	Efficiency	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Standard Number	Voltage - Output	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output	Features	Compliance	Data Rate	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input	Data Rate [Min]	Data Rate [Max]	Note
Tycon Systems Inc. TP-DCDC-2456G-VHP	70 W	CSA, FCC, FCC, TUV, TUV	2	80 %	RJ45 (Data, Power)	-40 °C	70 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OVP, SCP
Tycon Systems Inc. TP-DCDC-4848GD-HP		FCC, TUV		75 %		-30 ░C	60 °C							Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-2448G-HP		CSA, FCC, TUV	2	75 %		-30 ░C	60 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	900 mA	OCP, OVP, SCP	IEEE802.3af, IEEE802.3at	10 Mbps, 100 Mbps, 1000 Mbps
Tycon Systems Inc. TP-DCDC-4848-HP	35 W	CSA, FCC, FCC, TUV, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	72 V	36 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "		OCP, OVP, SCP	IEEE802.3at
Tycon Systems Inc. TP-DCDC-4856GD-VHP		FCC, TUV		80 %		-30 ░C	60 °C							Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-2456GD-BT	70 W	CSA, FCC, TUV	2	80 %	RJ45 (Data, Power)	-40 °C	70 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OVP, SCP	IEEE802.3bt
Tycon Systems Inc. TP-DCDC-4824G	24 W	CSA, FCC, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	72 V	36 V	RJ45 (Data, Power)	60950-1	24 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	1 A	OCP, OVP, SCP	IEEE802.3af	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm
Tycon Systems Inc. TP-DCDC-2USB-24			1	72 %	USB (Power)	-30 ░C	50 °C	Passive Injector			RJ45 (Data, Power)		24 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	500 mA	OCP, OVP, SCP			76.2 mm	35.6 mm	5 VDC	10 Mbps	100 Mbps	AC Power Cord Included
Tycon Systems Inc. TP-DCDC-1248GD	17 W	CSA, FCC, TUV	2	75 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	36 V	9 VDC	RJ45 (Data, Power)	60950-1	48 V	Chassis Mount	86.4 mm			1.4 "	3.4 "	3 "	350 mA	OCP, OVP, SCP	IEEE802.3af	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm
Tycon Systems Inc. TP-DCDC-2456GD-VHP	70 W	CSA, FCC, FCC, TUV, TUV	2	80 %	RJ45 (Data, Power)	-30 ░C	60 °C	Passive Injector	36 V	18 V	RJ45 (Data, Power)	60950-1	56 V	Chassis Mount	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "	1.25 A	OCP, OTP, OVP, SCP	IEEE802.3at

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 153.08

Description

General part information

TP-DCDC Series

Power Over Ethernet (POE) Port Data Rate
