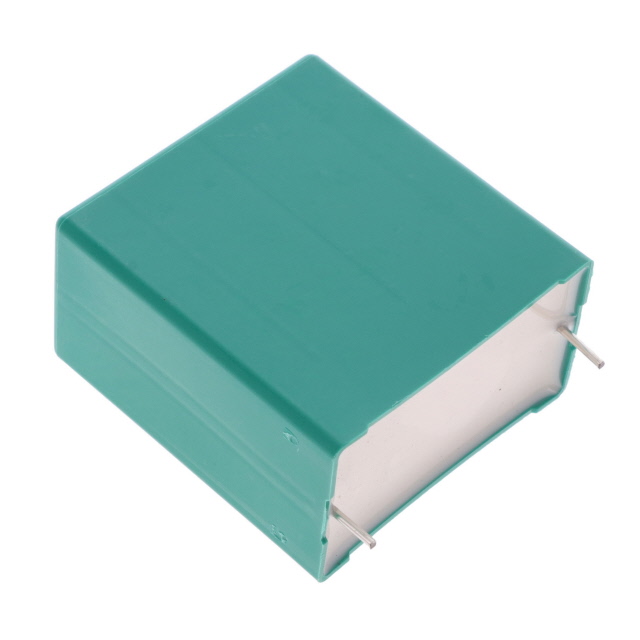

Specification	F871RO565M330Z

Applications	RFI Suppression, EMI
Capacitance	5.6 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	1.732 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension Length	1.614 in
Size / Dimension Width	0.945 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	330 V

F871 Series

...

Part	Tolerance	Voltage Rating - DC	Capacitance	Package / Case	Termination	Lead Spacing	Applications	Mounting Type	Voltage Rating - AC	Dielectric Material	Ratings	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Min)	Operating Temperature (Max)	Height - Seated (Max)
KEMET F871FS185M330Z	20 %	800 V	1.8 µF	Radial	PC Pins	1.083 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	1.24 in	0.748 in	-40 °C	110 °C	1.142 in
KEMET F871AE332K330C	10 %	800 V	3300 pF	Radial	PC Pins	0.394 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.512 in	0.157 in	-40 °C	110 °C	0.315 in
KEMET F871BR154K330R	10 %	800 V	0.15 µF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.512 in	-40 °C	110 °C	0.472 in
KEMET F871BB472K330L	10 %	800 V	4700 pF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.157 in	-40 °C	110 °C	0.394 in
KEMET F871RO565M330Z	20 %		5.6 µF	Radial	PC Pins	1.476 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	1.614 in	0.945 in	-40 °C	110 °C	1.732 in
KEMET F871AL472K330A	10 %	800 V	4700 pF	Radial	PC Pins	0.394 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.512 in	0.374 in	-40 °C	110 °C	0.295 in
KEMET F871BS184K330R	10 %	800 V	0.18 µF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.394 in	-40 °C	110 °C	0.63 in
KEMET F871BB103M330L	20 %	800 V	10000 pF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.157 in	-40 °C	110 °C	0.394 in
KEMET F871BT104M330L	20 %	800 V	0.1 µF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.354 in	-40 °C	110 °C	0.492 in
KEMET F871BB153K330A	10 %	800 V	0.015 µF	Radial	PC Pins	0.591 in	EMI RFI Suppression	Through Hole	330 V	Metallized Polypropylene (PP)	X1	0.709 in	0.157 in	-40 °C	110 °C	0.394 in
