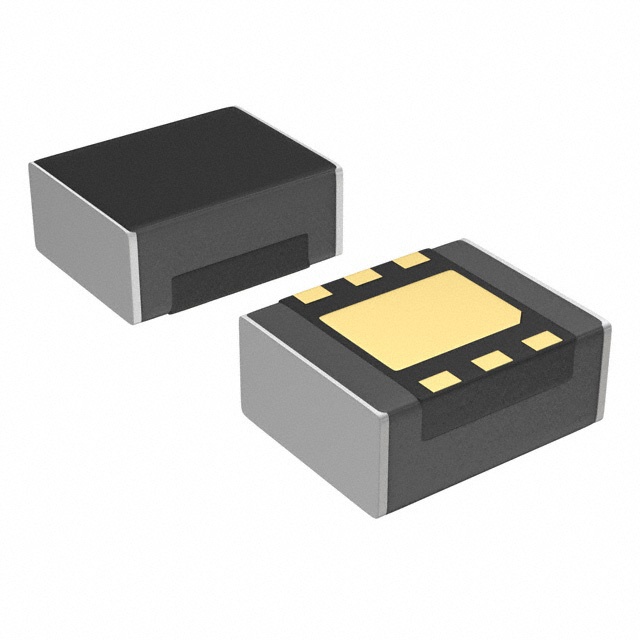

XCL222B091ER-G

Obsolete

Torex Semiconductor Ltd

0.5A INDUCTOR BUILT-IN STEP-DOWN

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

0.5A INDUCTOR BUILT-IN STEP-DOWN

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 1V

Part	Type	Applications	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]
Torex Semiconductor Ltd XCL222B101ER-G	Non-Isolated PoL Module	ITE (Commercial)	Surface Mount	93 %	2.5 V	1 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	5.5 V	OCP, OTP, SCP, UVLO	500 mA	1	8-TDFN Exposed Pad	CL-2025-02	-40 °C	105 ░C
Torex Semiconductor Ltd XCL222B091ER-G			Surface Mount														8-TDFN Exposed Pad	CL-2025-02
Torex Semiconductor Ltd XCL222B331ER-G	Non-Isolated PoL Module	ITE (Commercial)	Surface Mount	93 %	2.5 V	3.3 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	5.5 V	OCP, OTP, SCP, UVLO	500 mA	1	8-TDFN Exposed Pad	CL-2025-02	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DC DC Converter Output - Input

Technical documentation and resources

No documents available
