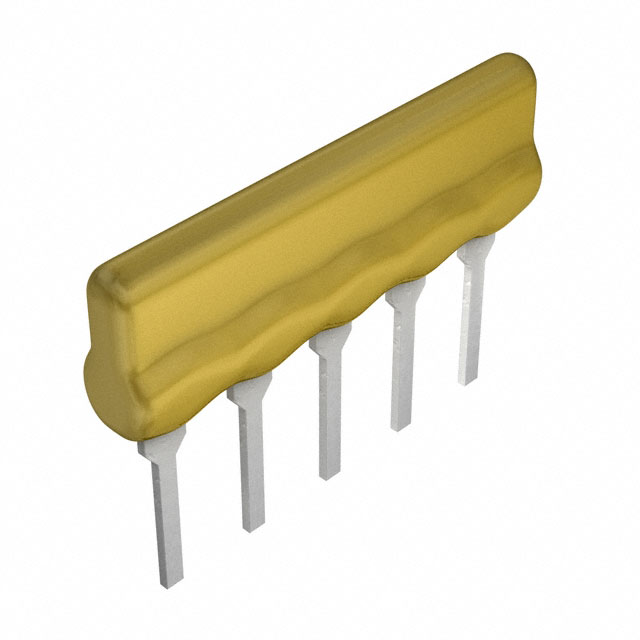

4605X-101-271LF

Active

Bourns Inc.

RES ARRAY 4 RES 270 OHM 5SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4605X-101-271LF

Active

Bourns Inc.

RES ARRAY 4 RES 270 OHM 5SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4605X-101-271LF

Circuit Type	Bussed
Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Mounting Type	Through Hole
Number of Pins	5
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5-SIP
Power Per Element	200 mW
Resistance (Ohms)	270 Ohms
Size / Dimension [x]	12.65 mm
Size / Dimension [x]	0.498 "
Size / Dimension [y]	2.49 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	5-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4605X Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Tolerance	Mounting Type	Circuit Type	Number of Resistors	Package / Case	Number of Pins	Power Per Element	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]
Bourns Inc. 4605X-101-273LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	27000 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-101-392LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	3.9 kOhms	-55 °C	125 °C
Bourns Inc. 4605X-101-271LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	270 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-AP1-222LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	2.2 kOhms	-55 °C	125 °C
Bourns Inc. 4605X-101-620LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	62 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-101-823LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	82 kOhms	-55 °C	125 °C
Bourns Inc. 4605X-101-151LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	150 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-101-391LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	390 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-101-682LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	6.8 Ohms	-55 °C	125 °C
Bourns Inc. 4605X-101-684LF	5.08 mm	0.2 "	5-SIP	12.65 mm	2.49 mm	0.498 "	0.098 in	100 ppm/°C	2 %	Through Hole	Bussed	4	5-SIP	5	200 mW	680 kOhms	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.23
		25	$ 0.18
		50	$ 0.13
		200	$ 0.09
		400	$ 0.08
		600	$ 0.06
		1000	$ 0.05

Description

General part information

4605X Series

270 Ohm ±2% 200mW Power Per Element Bussed 4 Resistor Network/Array ±100ppm/°C 5-SIP
