92-358.500
ActiveEAO

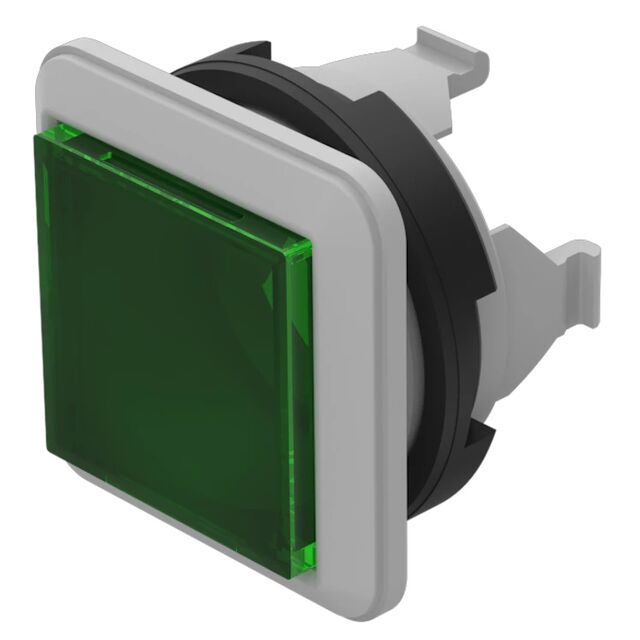

CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
92-358.500
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 92-358.500 | 92-358 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | EAO, 92 | EAO, 92 |
| Actuator Type | Pushbutton, Square | Pushbutton, Square |
| Illumination | Illuminated - Green | Illuminated, Illuminated - Orange, Illuminated - Yellow, Illuminated - Green |
| Panel Cutout Dimensions | 16.2 mm | 16.2 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.85 | |
| 10 | $ 7.95 | |||
| 25 | $ 7.59 | |||
| 50 | $ 7.26 | |||
| 100 | $ 6.97 | |||
| 250 | $ 6.61 | |||
| 500 | $ 6.12 | |||
| 1000 | $ 5.83 | |||
92-358 Series
Switch Bezels / Switch Caps KEYLOCK MNT 2POS 4N.O-4N.C
| Part | Requires | Illumination | Type | Actuator Type | (Select First, Then Apply Filters) Compatible Series | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|
EAO 92-358.100 | Contact Block(s), Illumination Source | Illuminated | Momentary | Pushbutton, Square | 92, EAO | |
EAO 92-358.300 | Contact Block(s), Illumination Source | Illuminated - Orange | Momentary | Pushbutton, Square | 92, EAO | 16.2 mm |
EAO 92-358.200 | ||||||
EAO 92-358.200 | Contact Block(s), Illumination Source | Momentary | Pushbutton, Square | 92, EAO | 16.2 mm | |
EAO 92-358.400 | Contact Block(s), Illumination Source | Illuminated - Yellow | Momentary | Pushbutton, Square | 92, EAO | 16.2 mm |
EAO 92-358.500 | Contact Block(s), Illumination Source | Illuminated - Green | Momentary | Pushbutton, Square | 92, EAO | 16.2 mm |
EAO 92-358.300 |
Description
General part information
92-358 Series
Switch Bezels / Switch Caps KEYLOCK MNT 2POS 4N.O-4N.C
