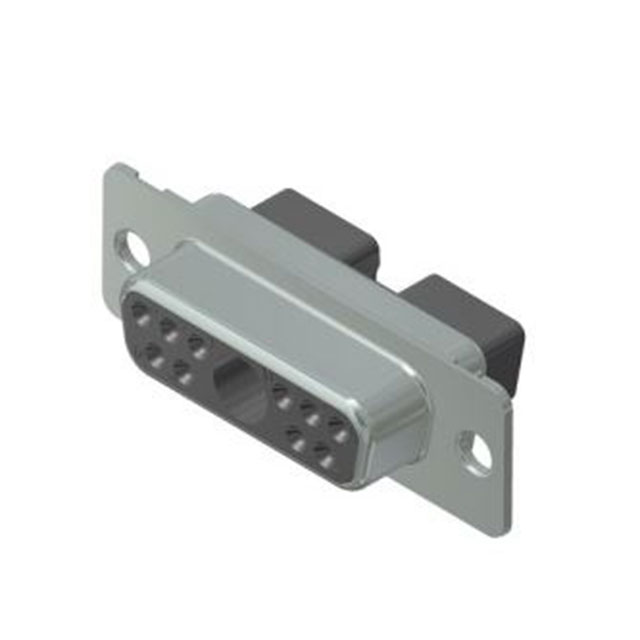

3011W1SXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 11POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3011W1SXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 11POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3011W1SXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2

3011W1S Series

Part	Number of Rows	Mounting Type	Connector Type	Contact Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Shell Finish Thickness	Shell Finish Thickness	Note	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Material Flammability Rating	Termination	Backset Spacing	Backset Spacing	Contact Material	Current Rating (Amps)	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Contact Finish Thickness
Amphenol CONEC 3011W1SXK99A10X	2	Free Hanging (In-Line)	Receptacle for Female Contacts	Coax Power	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Housing/Shell (Unthreaded)	Black	11C1 11W1	2	Combo D-Sub	8 µm	315 µin	Contacts Not Included	10	1
Amphenol CONEC 3011W1SAU99G40X	2	Board Edge Right Angle Through Hole	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled			Housing/Shell (4-40)	Green	11C1 11W1	2	Combo D-Sub				10	1	Gold	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy
Amphenol CONEC 3011W1SAM99A10X	2	Free Hanging (In-Line)	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Housing/Shell (Unthreaded)	Green	11C1 11W1	2	Combo D-Sub				10	1	Gold	UL94 V-0				Copper Alloy	7.5 A	20 AWG	8 çin	0.203 çm	250 VDC
Amphenol CONEC 3011W1SAR99E20X	2	Through Hole	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	4-40 Board Side	Green	11C1 11W1	2	Combo D-Sub				10	1	Gold	UL94 V-0	Solder			Copper Alloy	7.5 A				250 VDC	Flash
Amphenol CONEC 3011W1SAR99F20X	2	Through Hole	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	4-40	Green	11C1 11W1	2	Combo D-Sub				10	1	Gold	UL94 V-0	Solder			Copper Alloy	7.5 A				250 VDC	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.81
		10	$ 3.46
		25	$ 3.28
		50	$ 3.20
		100	$ 3.05
		250	$ 2.67
		500	$ 2.59
		1000	$ 2.21
		2500	$ 2.06

Description

General part information

3011W1S Series

Receptacle for Female Contacts Housing D-Sub, Combo Connector 11 (10 + 1 Coax or Power) Position
