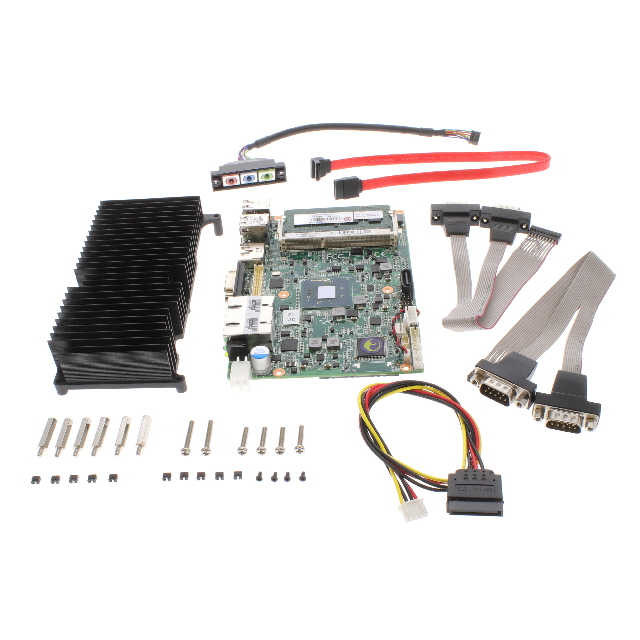

MIO-5251JZ-2GA1E

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	MIO-5251JZ-2GA1E

Cooling Type	Heat Sink
Core Processor	Intel Celeron J1900
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	MIOe, mPCIe
Number of Cores	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Power (Watts)	7.44 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	4
Size / Dimension [x]	5.7 "
Size / Dimension [x]	144.78 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Speed	2 GHz
Storage Interface	SATA, SD, mSATA
USB	USB 3.0 (1), USB 2.0 (4)
Video Outputs	HDMI, LVDS, VGA, DP
Watchdog Timer	True

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	USB	Power (Watts)	Video Outputs	RAM Capacity/Installed [custom]	Speed	Operating Temperature [Min]	Operating Temperature [Max]	RS-232 (422, 485)	Cooling Type	Ethernet	Digital I/O Lines	Expansion Site/Bus	Core Processor	Storage Interface	Number of Cores	Ethernet	Form Factor
Advantech Corp MIO-5251JZ-2GA1E	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (4) USB 3.0 (1)	7.44 W	DP HDMI LVDS VGA	8 GB	2 GHz	-20 C	80 C	4	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	8	MIOe mPCIe	Intel Celeron J1900	mSATA SATA SD	4
Advantech Corp MIO-5251J-U0A1E	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (4) USB 3.0 (1)	7.44 W	DP HDMI LVDS VGA	8 GB	2 GHz	0 °C	60 °C	4	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	8	MIOe mPCIe	Intel Celeron J1900	mSATA SATA SD	4
Advantech Corp MIO-5251E-S3A1E	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (4) USB 3.0 (1)	4.68 W	DP HDMI LVDS VGA	8 GB		0 °C	60 °C	4	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	8	MIOe mPCIe	Intel Atom E3825	mSATA SATA SD	2
Advantech Corp MIO-5251J-U0A1N	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (4) USB 3.0 (1)	7.44 W	DirectX11 DP eDP HDMI LVDS Multi-Display OpenCL OpenGL VGA	8 GB	2 GHz	0 °C	60 °C	2	Fan	10 Mbps 100 Mbps 1000 Mbps	8	Audio LPC mPCIe PCIe SMBus	Intel Celeron J1900	mSATA SATA 2.0 (1)	4	GbE (2) RJ45 (2)	3.5 in
Advantech Corp MIO-5251JZ2-2GA1E	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (4) USB 3.0 (1)	7.44 W	DP HDMI LVDS VGA	8 GB	2 GHz	-40 °C	85 °C	4	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	8	MIOe mPCIe	Intel Celeron J1900	mSATA SATA SD	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 637.50

General part information

Single Board Computer 2.0GHz 4 Core 8GB/0GB RAM Intel Celeron J1900

Technical documentation and resources

No documents available
