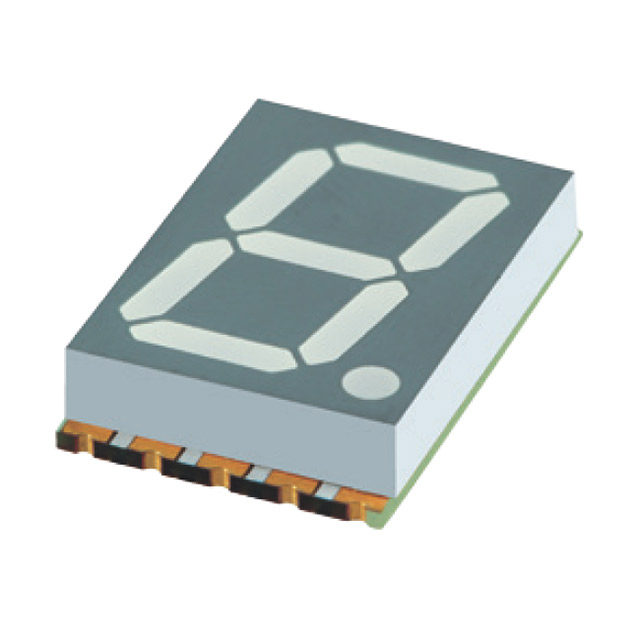

XZFCBD14C

Active

SunLED

DISPLAY 7SEG 0.56" SGL BLU 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFCBD14C

Active

SunLED

DISPLAY 7SEG 0.56" SGL BLU 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFCBD14C

Color	Blue
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	15 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.148 "
Size / Dimension [x]	3.75 mm
Size / Dimension [y]	0.488 in
Size / Dimension [y]	12.4 mm
Size / Dimension [z]	0.669 in
Size / Dimension [z]	17 mm
Voltage - Forward (Vf) (Typ)	3 V
Wavelength - Peak	460 nm

XZFCBD14 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Number of Characters [custom]	Millicandela Rating	Common Pin	Power Dissipation (Max) [Max]	Display Type	Color	Number of Characters
SunLED XZFCBD14C	0.56 in	14.22 mm	10-SMD No Lead	3 V	460 nm	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	10 mA	1	15 mcd	Common Cathode	120 mW	7-Segment	Blue
SunLED XZFCBD14A2	0.56 in	14.22 mm	20-SMD No Lead	3 V	460 nm	0.148 in	0.988 "	3.75 mm	0.669 "	17 mm	25.1 mm	10 mA		15 mcd	Common Anode	120 mW	7-Segment	Blue	2
SunLED XZFCBD14A	0.56 in	14.22 mm	10-SMD No Lead	3 V	468 nm	0.748 "	0.488 in	19 mm	0.148 "	3.75 mm	12.4 mm	10 mA	1	15 mcd	Common Anode	120 mW	7-Segment	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	400	$ 1.73
		800	$ 1.42
		1200	$ 1.35
		2000	$ 1.27

Description

General part information

XZFCBD14 Series

Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Cathode 3V 10mA 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) 10-SMD, No Lead
