BF22258-25B/DK01

Active

JKL Components Corp.

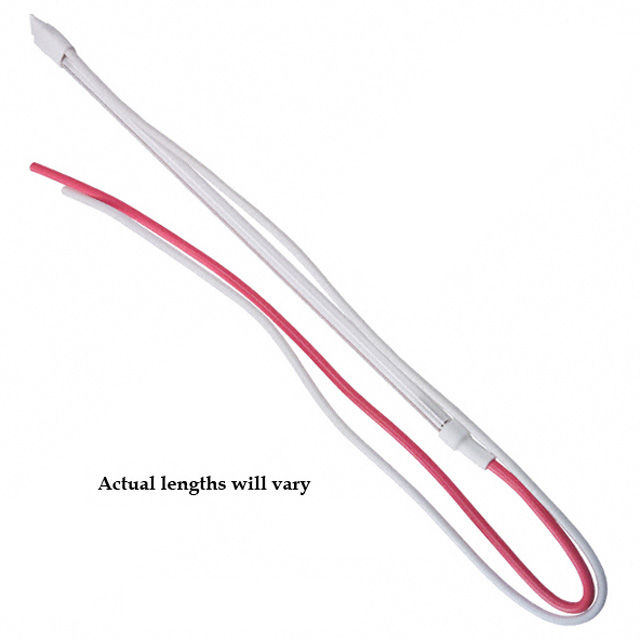

CCFL WH LAMP 1600V 5MA 2.2X258MM

Search across all available documentation for this part.

Active

JKL Components Corp.

CCFL WH LAMP 1600V 5MA 2.2X258MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BF22258-25B/DK01	BF22258 Series

Current	5 mA	5 mA
Output	38000 cd/m2	38000 cd/m2
Size / Dimension [x]	2.2 mm	2.2 mm
Size / Dimension [y]	258 mm	258 mm
Type	CCFL, Tri-Phosphor RGB White Lamp Assembly	CCFL, Tri-Phosphor RGB White Lamp, CCFL, Tri-Phosphor RGB White Lamp Assembly
Voltage	535 V, 1600 V	535 - 1600 V

CCFL WH LAMP 1600V 5MA 2.2X258MM

Part	Output	Type	Voltage	Size / Dimension [y]	Size / Dimension [x]	Current
JKL Components Corp. BF22258-25B	38000 cd/m2	CCFL, Tri-Phosphor RGB White Lamp	535 V, 1600 V	258 mm	2.2 mm	5 mA
JKL Components Corp. BF22258-25B/DK01	38000 cd/m2	CCFL, Tri-Phosphor RGB White Lamp Assembly	535 V, 1600 V	258 mm	2.2 mm	5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.54

General part information

CCFL, Tri-Phosphor RGB White Lamp Assembly 1600V (Start), 535V (Operating) 5 mA 38000 cd/m2 2.2mm x 258mm
