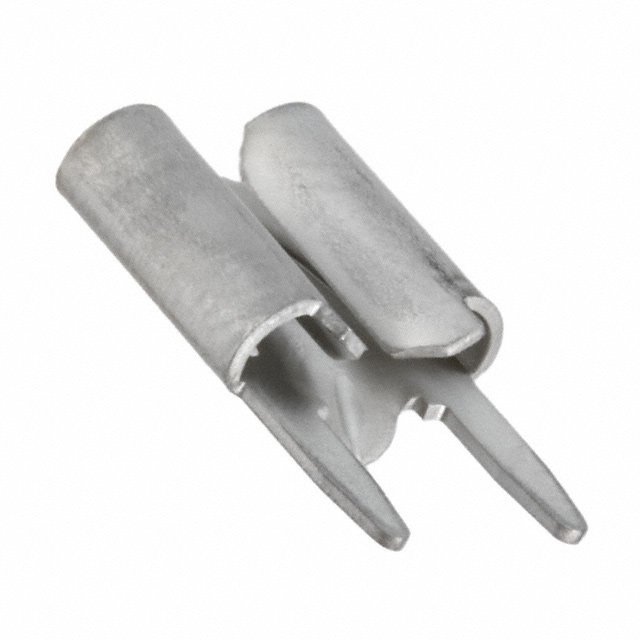

1217137-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 0.205/0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217137-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 0.205/0.250 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217137-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 12.95 mm |
| Length - Overall [x] | 0.51 in |
| Mounting Type | Through Hole |
| Tab Length | 0.33 in |
| Tab Length | 8.38 mm |
| Tab Thickness | 0.025 " |
| Tab Thickness | 0.64 mm |
| Tab Width | 0.205 in, 0.25 in |
| Tab Width | 5.21 mm, 6.35 mm |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1217137 Series
CONN QC RCPT 0.205/0.250 SOLDER
| Part | Contact Finish | Mounting Type | Termination | Contact Material | Gender | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Insulation | Tab Width | Tab Width | Length - Overall [x] | Length - Overall [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217137-2 | Tin | Through Hole | Solder | Brass | Female | 0.33 in | 8.38 mm | 0.025 " | 0.64 mm | Non-Insulated | 0.205 in, 0.25 in | 5.21 mm, 6.35 mm | 12.95 mm | 0.51 in | Standard |
Description
General part information
1217137 Series
0.205" (5.21mm), 0.250" (6.35mm) Quick Connect Female Solder Connector Non-Insulated
