B32776T8855K000

Active

EPCOS - TDK Electronics

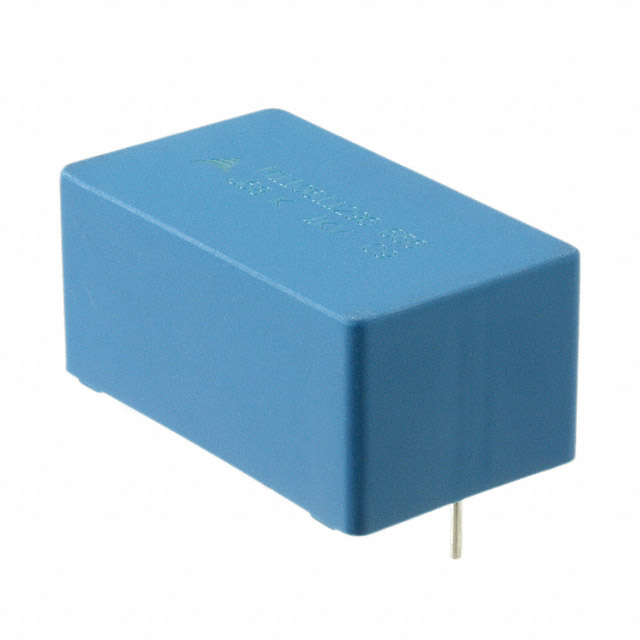

CAP FILM 8.5UF 10% 800VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32776T8855K000

Active

EPCOS - TDK Electronics

CAP FILM 8.5UF 10% 800VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.32
		10	$ 4.61
		50	$ 4.16

Description

General part information

B32776T Series

8.5 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B32776T8855K000	B32776T Series

Applications	DC Link, DC Filtering	DC Link, DC Filtering
Capacitance	8.5 µF	2.7 - 12 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	17.8 mOhms	14.4 - 34.7 mOhms
Features	Long Life	Long Life
Height - Seated (Max) [Max]	19 mm	15 - 19 mm
Height - Seated (Max) [Max]	0.748 in	0.591 - 0.748 in
Lead Spacing	37.5 mm	37.5 mm
Lead Spacing	1.476 in	1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Size / Dimension [x]	41.5 mm	41.5 mm
Size / Dimension [x]	1.634 "	1.634 "
Size / Dimension [y]	24 mm	24 mm
Size / Dimension [y]	0.945 in	0.945 in
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 10 %
Voltage Rating - DC	800 V	575 - 1300 V
Voltage Rating - DC	-	1.1 - 1.3 kV

B32776T Series

CAP FILM 8.5UF 10% 800VDC RADIAL

Part	Capacitance	Applications	Features	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Dielectric Material	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC
EPCOS - TDK Electronics B32776T8855K000	8.5 µF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	19 mm	0.748 in	17.8 mOhms	Metallized, Polypropylene (PP)	10 %	-40 °C	105 ░C	800 V	24 mm	41.5 mm	0.945 in	1.634 "
EPCOS - TDK Electronics B32776T1275K000	2.7 µF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	15 mm	0.591 "	34.7 mOhms	Metallized, Polypropylene (PP)	10 %	-40 °C	105 ░C	1300 V	24 mm	41.5 mm	0.945 in	1.634 "	1.3 kV
EPCOS - TDK Electronics B32776T0505J000	5 µF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	19 mm	0.748 in	23.6 mOhms	Metallized, Polypropylene (PP)	5 %	-40 °C	105 ░C	1100 V	24 mm	41.5 mm	0.945 in	1.634 "	1.1 kV
EPCOS - TDK Electronics B32776T9505K000	5 µF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	15 mm	0.591 "	26.1 mOhms	Metallized, Polypropylene (PP)	10 %	-40 °C	105 ░C	900 VDC	24 mm	41.5 mm	0.945 in	1.634 "
EPCOS - TDK Electronics B32776T8685K000	6.8 ÁF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	15 mm	0.591 "	22.1 mOhms	Metallized, Polypropylene (PP)	10 %	-40 °C	105 ░C	800 V	24 mm	41.5 mm	0.945 in	1.634 "
EPCOS - TDK Electronics B32776T5126K000	12 µF	DC Filtering, DC Link	Long Life	37.5 mm	1.476 in	Radial	Through Hole	PC Pins	19 mm	0.748 in	14.4 mOhms	Metallized, Polypropylene (PP)	10 %	-40 °C	105 ░C	575 V	24 mm	41.5 mm	0.945 in	1.634 "
